Lithium-ion batteries are extremely environment friendly, dissipating lower than 10% of their vitality as warmth throughout operation. Nevertheless, they require thermal administration programs to control this warmth, as it may well negatively impression their efficiency and lifespan. Alternatively, their way more inefficient electrochemical distant cousin, the human physique, generates sufficient warmth to boil over 100 cups of tea each day and is actually simply chillin’.
The key? Our pores and skin and its skill to sweat. A crew of researchers from the Metropolis College of Hong Kong could have discovered a option to give batteries this skill, utilizing a Pores and skin-Impressed Adaptive Nanocomposites Cooling Membrane.
Thermal administration for lithium-ion batteries has been in place so long as the batteries themselves. Whereas extremely environment friendly, these batteries nonetheless lose a portion of their vitality as warmth through the conversion between electrical and chemical vitality as they cost and discharge. With out correct administration, the dissipated warmth can degrade the battery, impacting its lifespan over time. In extreme circumstances, it may well set off thermal runaway, a harmful chain response that will lead to hearth or explosion.
It’s no shock, subsequently, that just about each lithium-ion-powered system, from the machine you’re presently holding to electrical autos, incorporates some type of thermal administration. Over time, engineers have developed followers, warmth sinks, liquid cooling loops, phase-change supplies, and different applied sciences to maintain cell temperatures inside protected working bounds. These strategies have confirmed efficient. Nevertheless, they’re usually complicated and nearly all the time require further area and vitality.
Taking inspiration from nature’s missed however extremely efficient cooling system, mammals’ pores and skin, the crew of researchers developed a cooling membrane that “sweats” as an alternative choice to typical thermal administration programs.
Dr. Sui Zengguang, Metropolis College of Hong Kong
“We seen how sweating helps maintain physique temperature comparatively secure even beneath intense exertion. It’s a easy phenomenon, however it displays an especially environment friendly thermoregulation functionality formed by evolution. We requested ourselves: can we translate this ‘sweating + evaporation’ precept into high-power machine/battery thermal administration in a managed, engineering-friendly means?” says Dr. Zengguang Sui of the analysis crew.

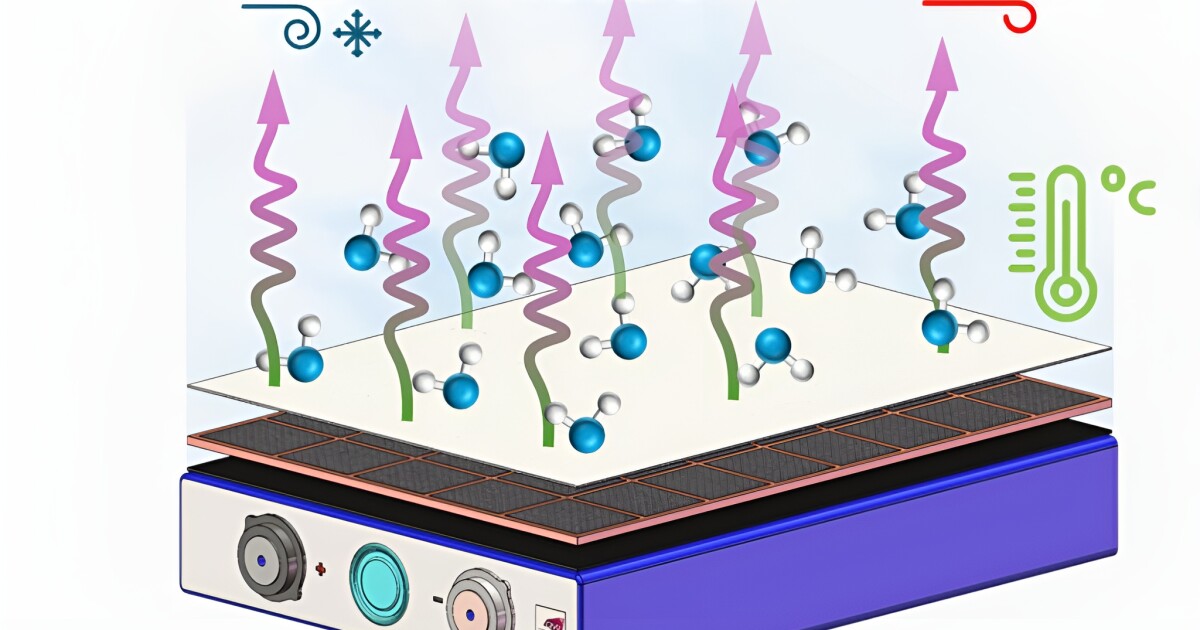

The membrane, which wraps across the battery like a pores and skin, is a composite materials comprising lithium chloride (LiCl), graphene oxide (GO), and lively carbon fiber (ACF), all encased in a porous PTFE membrane and supported by a copper body.
Dr. Sui Zengguang, Metropolis College of Hong Kong
Fairly a mouthful, however each part performs a vital position. Let’s unpack them one after the other.
LiCl is a extremely hygroscopic salt that effectively absorbs and releases water. When the battery is cool, the salt pulls in and retains water from the ambiance. The graphene oxide varieties an environment friendly heat-transfer community, spreading thermal vitality throughout the membrane because the battery heats up, whereas the lively carbon fiber’s porous construction maximizes floor space for water evaporation. The copper body ensures even warmth distribution and prevents localized saturation. Lastly, the PTFE membrane prevents resolution leakage whereas permitting water vapor to flee freely.
When the battery heats up, the water absorbs the warmth and evaporates, transferring it away from the battery. This mechanism is called desorption cooling. When the battery cools, the membrane spontaneously absorbs moisture from the encircling air, restoring its water content material.
So … what makes the membrane particular as a thermal administration system? For starters, it’s extremely efficient. Proof-of-concept assessments present that the self-adaptive cooling membrane delivers a median cooling energy of 802.5 W·m⁻² and reduces temperature by a complete of 34.3 °C (61.7 °F) beneath a 2.7 kW·m⁻² warmth flux. When utilized to a business 3.7 V/12 Ah lithium-ion battery beneath high-rate discharging and charging, the membrane prolonged battery lifetime from 118 to 233 cycles.
In English, beneath very excessive warmth, much like what high-performance batteries produce, the fabric managed to take away a number of warmth per unit space, reaching a temperature drop of over 30 °C (54 °F). Past cooling, the membrane affords glorious flame retardancy, stopping thermal runaway beneath circumstances that might usually trigger combustion. The system can be extremely repeatable and long-lasting. Throughout testing, the membrane held up its thermal administration properties after 1,000 hours of rigorous use.
Along with these components, the system implements passive cooling. In contrast to followers and liquid cooling programs, the adaptive nanocomposite cooling membrane doesn’t require vitality to perform. The hygroscopic LiCl within the membrane routinely attracts water from the encircling air at any time when the battery cools.
“Our purpose was to develop a passive, compact, low-cost, and sensible thermal administration strategy that may ship excessive cooling functionality with out exterior energy, whereas additionally addressing reliability and security for actual battery operation,” says Dr. Sui.
Lastly, the cooling membrane is a compact, non-complex system that’s extremely scalable. The membrane will be sized for each transportable gadgets and enormous li-ion programs, resembling EVs.
Now, with all its useful traits, the expertise is actually a possible game-changer for lithium-ion battery thermal administration. Nevertheless, you will need to notice that the system performs finest in functions with intermittent or cyclic warmth masses. Cooling in continuous-heat situations is restricted, because the system requires time to chill down and reabsorb moisture.
Dr. Sui Zengguang, Metropolis College of Hong Kong
Whereas it’s nonetheless a comparatively new expertise and would require additional analysis and improvement to realize full viability, the prospects are thrilling.
“We see sturdy potential wherever that wants light-weight, compact, power-free thermal management with significant cooling efficiency. Specifically, we imagine essentially the most compelling and near-term alternatives are Humanoid robots and Unmanned aerial autos (UAVs)/drones, the place weight and packaging are vital,” Dr. Sui explains.
A paper detailing the analysis was revealed within the journal ACS Nano.
Supply: ACS Axial
