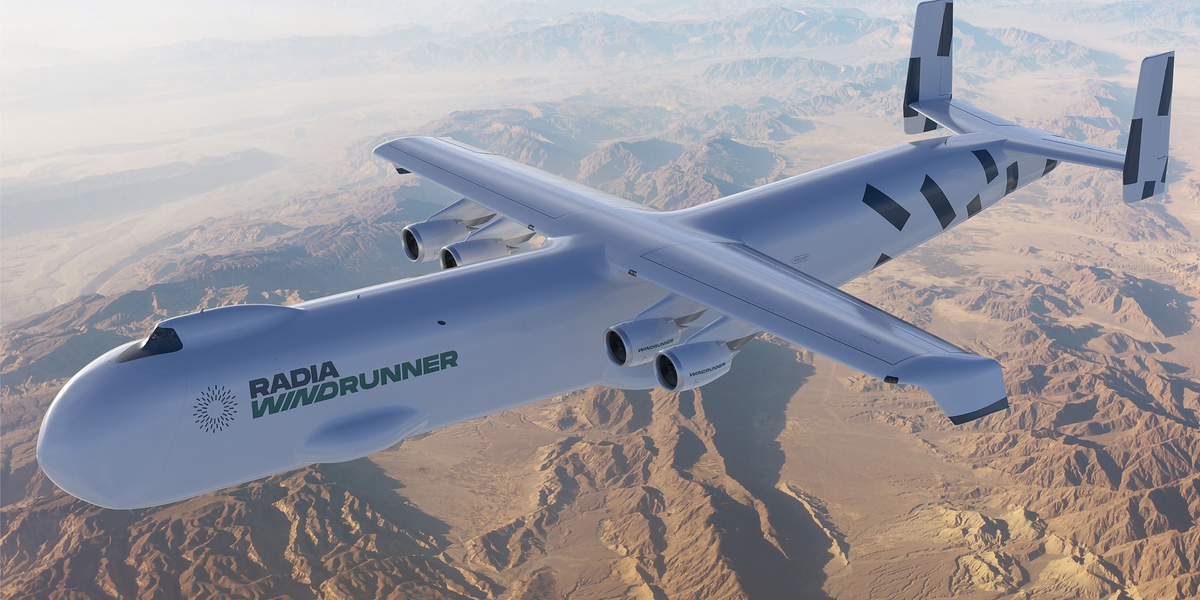

Wind Turbine Blade Transport by Giant Aircraft

With Karni’s support in controlling the touchdown gear and flaps, we set down again in Denver. I not solely maintain the WindRunner in a single huge piece but in addition deliver it to a cease on the very entrance of the runway, simply earlier than the seen streaks of burned rubber from different airliners.

In the true world, this exceptional feat of deceleration will allow the WindRunner to cease inside 10 lengths of the plane—about 1,080 meters. And the plane gained’t want the perfected runways of up to date airports. It’s designed, by necessity, to land on and take off from rugged grime tracks—like entry roads on the perimeter of a wind farm, however wider.

These capabilities are enabled by the aircraft’s comparatively gentle weight, its wing and physique form, and its massive tires. Optimized for cargo quantity reasonably than mass—as a result of turbine blades are large however not dense—WindRunner is, successfully, one big cargo maintain with the naked minimal of facilities required to make it fly. “Touchdown on grime principally comes right down to what number of kilos per wheel you might have,” Lundstrom instructed me.

WindRunner’s 4 jet engines will support with quick takeoffs. “When the plane is empty,” Lundstrom says, “the engines are so highly effective that the car has a thrust-to-weight ratio much like early fighter jets.” (Radia selected an engine already in use by trendy airlines, however hasn’t disclosed which one.)

To permit the aircraft to shortly flip skyward with out scraping its underside, its again finish will sweep away from the bottom at a pointy angle. A single tail tall sufficient to stabilize the WindRunner would exceed airports’ top restrict of 24 meters, so Radia designed it with two risers within the form of the letter H.

For landings, the plane’s broad and stubby wings use their almost 1,000-square-meter floor to catch air and decelerate shortly. Twenty massive tires borrowed from the traditional design of the U.S. Air Power’s C-130 Hercules will assist WindRunner decelerate after it touches the bottom.

The aircraft’s mouth flips as much as reveal its cavernous inside, a characteristic borrowed from the Antonov An-124. The cockpit, itself about as massive as a whole Gulfstream non-public jet, seems to be like a pimple bulging from the WindRunner’s staggering body. It stands proud from the fuselage to keep away from interfering with cargo house and is the one a part of the aircraft designed for human habitation. Throughout flight, the maintain is simply pressurized to concerning the stage of the height of Mt. Everest, to save lots of power.

Why Wind Generators Bought Larger

Throughout my go to to Radia, a virtual-reality headset lets me behold the colossus from beneath its wing and inside its cargo bay. It appears like standing subsequent to a warehouse that may fly. Seeing the digital superplane towering above, and greedy the aircraft’s monumental scale makes me surprise if this journey in engineering is important, that certainly there’s one other means.

The biggest helicopters constructed within the Western Hemisphere can carry as much as 15 tonnes, however megablades can weigh 4 to 5 occasions that, Lundstrom notes. Blimps and airships can carry the burden, however they bring about a laundry checklist of issues. They’re too sluggish, want an costly hangar to defend them from unhealthy climate, require helium—which is at present scarce—and wrestle to land when it’s windy. “And by the way in which, wind farms are usually windy,” he says.

And, because the world’s greatest cargo planes can’t be stretched to fulfill the size of a 100-meter blade, nor can they land on quick, rugged runways, a brand new design is required. Nonetheless, the basic query stays: Is increasing the size of onshore wind turbines by 50 p.c definitely worth the bother?

Michael Howland, a wind-optimization skilled at MIT, says there’s an enormous worth proposition in it. A turbine’s power-generation capability will increase by the dice of the wind speed blowing by means of it and the sq. of the diameter of the circle created by the spinning blades, he says. In different phrases, larger generators, whereas dearer per particular person unit, greater than make up for it in producing capability. That’s why the dimensions of generators has grown steadily bigger over time.

“You’re in a position to have half as many,” Lundstrom provides. “So though the price of every turbine has gone up, the associated fee per gigawatt goes means down.” He estimates that GigaWind generators would lower the price of power by 20 to 35 p.c whereas growing output by 10 to twenty p.c, doubtlessly doubling wind’s profitability even with the price of all these flights included.

Having fewer complete generators means a wind farm may house them farther aside, avoiding airflow interference. The generators could be almost twice as tall, so that they’ll attain a better, gustier a part of the environment. And massive generators don’t must spin as shortly, so they might make financial sense in locations with common wind speeds round 5 meters per second in contrast with the roughly 7 m/s wanted to maintain smaller models. “The end result…is greater than a doubling of the acres on the planet the place wind is viable,” Lundstrom says.

Upon the WindRunner’s touchdown at a wind farm, rail tools will roll turbine blades off the aircraft. Radia

To kick-start this market, and to help the primary WindRunners, Radia is creating a enterprise arm that companions with wind-turbine producers to develop new wind farms each domestically and internationally. WindRunners would ship blades to these farms and people developed by different firms.

The scope of Radia’s plan, and the ambition behind it, has impressed many observers, together with Howland. “I used to be each shocked but in addition very impressed by the modern spirit of the concept,” he says. “It’s nice to be bold by way of fixing the grand challenges.” However onshore “gigawind” is filled with unknowns, he notes. Much less is known concerning the move physics and engineering of record-breaking turbine sizes. Plus, large blades may create wakes so massive that the generators behind them could be noticeably affected by variations in air temperature and even the Coriolis impact brought on by Earth’s rotation, and would possibly require innovation in basic science, he says.

Then there’s the query of the massive aircraft’s carbon footprint. To maneuver sufficient blades for a complete wind-farm operation, a WindRunner would possibly fly forwards and backwards from manufacturing unit to farm day-after-day for months, carrying one or two blades at a time. This may increasingly create extra carbon emissions in contrast with trucking them. However Radia argues that the elevated quantity of clean energy created by superior wind farms could be excess of sufficient to offset the CO₂ from the jet engines. Apart from, the largest element of a wind farm’s carbon footprint is the concrete and metal. With longer blades permitting for fewer generators to create the identical quantity of power, carbon contributions ought to lower, Lundstrom argues.

As Radia continues its quest, a darkish cloud hangs over the endeavor. U.S. President Donald Trump and his administration have made a number of makes an attempt to grind the American wind-energy trade to a halt by pausing approvals, permits, and authorities loans. However Lundstrom pushes again in opposition to the notion that the prevailing winds out of Washington will clip Radia’s wings. There’s merely an excessive amount of cash to be made, he says.

“My perception is that [it’ll] type itself out….We’ll be delivering [planes] on the finish of this administration,” Lundstrom says. Growing the dimensions at which societies can produce wind power is essential for a future with out fossil fuels. And that scale, he says, can’t be reached with no new airplane to make it attainable.
