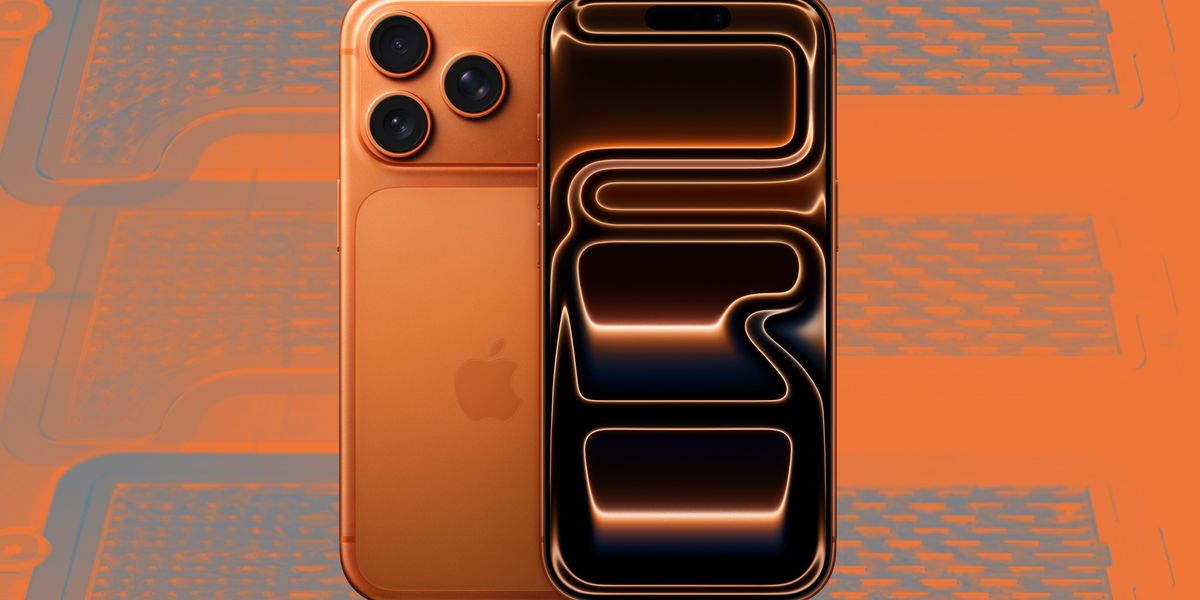

On 9 September, Apple launched its latest lineup, together with the iPhone 17 series. A lot of the eye went to a brand new ultrathin mannequin and a vivid orange coloration possibility (a shade not dissimilar to that of the IEEE Spectrum brand). The brand new smartphones can even ship with the most recent operating system and its “Liquid Glass” software program design—however the liquid in these telephones goes past software program.
The iPhone 17 Pro and iPhone 17 Pro Max comprise skinny, hermetically sealed chambers with a drop of water inside that cycles between liquid and gasoline to assist dissipate warmth. Generally known as vapor chambers, the cooling system is turning into extra widespread in smartphones constructed for sustained excessive efficiency. Some high-end Samsung Galaxy and Google Pixel fashions, amongst others, have launched vapor-chamber cooling prior to now few years. Now, Apple is following their lead.
“Cooling of smaller portables like telephones should concentrate on spreading warmth as broadly as potential to the floor of the machine, with explicit consideration to heat-generating elements, just like the chip,” says Kenneth Goodson, a professor of mechanical engineering at Stanford who makes a speciality of heat transfer and power conversion. To chill down these scorching spots, the business appears to be shifting towards vapor chambers and different phase-change know-how.
How vapor chambers maintain telephones cool
The usual strategy to cooling smartphones makes use of a strong, extremely conductive plate made out of a fabric like copper to unfold warmth. This strategy depends on having a floor the place warmth can unfold. Generally, fins are added to increase that floor, however this could result in a thicker machine. Most corporations, nevertheless, are intent on making thinner and thinner telephones.
Section-change know-how—which has been utilized in laptops for many years, Goodson notes—achieves the identical purpose extra successfully with fluid that boils and condenses to dissipate warmth. These two-phase options embrace vapor chambers, like these used within the new iPhone, in addition to slender, fingerlike buildings referred to as heat pipes.
Telephones have restricted quantity to work with, and “efficiency per quantity is vital,” says Victor Chiriac, the CEO and cofounder of World Cooling Expertise Group, primarily based in Phoenix. Skinny and large vapor chambers have a excessive heat-removal capability and supply an efficient answer. The cycle between liquid and vapor is “a strong mechanism for absorbing warmth,” he says.
Apple’s vapor chamber effectively spreads warmth throughout the cellphone’s physique.Apple
In Apple’s model, a small quantity of deionized water is sealed within the chamber. The water evaporates when close to warmth sources, then condenses again right into a liquid when the warmth dissipates into the cellphone’s surrounding aluminum physique. Water is usually utilized in vapor chambers, although generally different supplies are combined in to forestall it from freezing and cracking the seal, Chiriac says.
Vapor-chamber manufacturing faces challenges
As Apple, Samsung, and others push the boundaries of how skinny telephones can get, manufacturing vapor chambers might turn out to be a problem. Whereas strong supplies can simply be shaved down, these chambers have to have sufficient area for coolant to journey by means of channels. The chambers should be completely sealed with a view to work correctly, and “the thinner you make it, the much less area you might have for that secret sauce to do its factor,” Chiriac says.
It comes all the way down to physics: “A giant problem in small units like telephones is that as you scale down the thickness of a vapor chamber, the fluid physics aggressively cut back their efficiency relative to copper and different strong warmth conductors,” Goodson explains. (This can be a downside that researchers, together with his students, are working to deal with with new microstructures.) Plus, vapor chambers are typically costly to fabricate.
Nonetheless, Apple and different corporations have determined to take a position on this know-how for his or her strongest cellphone fashions. Goodson suspects a part of that call is to leverage the “wow” issue. However, he says, “with time this strategy will possible turn out to be an business customary.”
