In Japanese mythology, dragons aren’t the fire-breathing, treasure-hoarding monsters you may discover in Tolkien, Martin, et al. As a substitute, they’re smart, serpentine creatures who management rain, fly by the clouds, and shield sacred areas.
Engineers on the College of Tokyo JSK Robotics Laboratory had been engaged on a drone that represents the latter referred to as the “Twin-Rotor embedded multilink robotic with the Capacity of multi-deGree-of-freedom aerial transformatiON” – a mouthful, so simply DRAGON for brief.

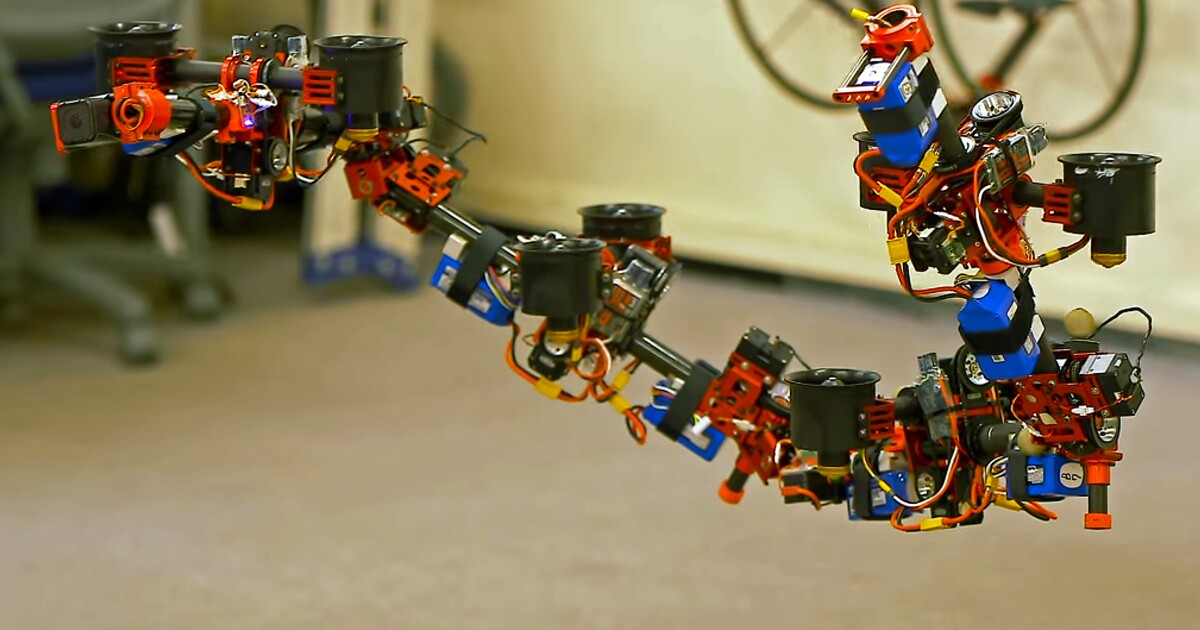

It was the primary of its form proven to the world in 2018. It had a modular physique, with every “hyperlink” having two ducted followers on gimbals for flight and a pair of levels of freedom (DoF) for articulation per hyperlink. It might curl, wind, slither, and unfurl once more – all whereas in steady flight, squeezing by tight gaps within the air like a flying serpent.
Meet Moju Zhao — Dreaming of Dragons (Audio:EN, Subs:EN|JP)
By August 2022, DRAGON was sooner and extra steady. It was additionally able to not solely carrying payloads but additionally manipulating objects. Pinching, pushing, pulling, and even rotating (to open and shut valves) purely with vectored thrust.
Typical flying drones like quadcopters might be able to carry masses from above decently effectively, however DRAGON can method objects from almost any angle: above, under, or subsequent to to be able to work together with them. Suppose: catastrophe aid with a collapsed constructing with very small passageways the place DRAGON might snake its approach by slender openings to seek out the emergency off valve for a fuel line.
It weighs a hefty 16.7 lb (7.6 kg) however can haul almost half its weight at 7.5 lb (3.4 kg) – for about three minutes on a full cost.
Forceful Valve Manipulation by Articulated Aerial Robotic DRAGON
Nonetheless, the progressive DRAGON remained very a lot a analysis prototype with out actually ever getting its wings.
Assistant Professor Moju Zhao says the subsequent step to preserve battery and lengthen the mission could be to offer it the flexibility to stroll. A 3-minute flight time is hardly sufficient time to do something helpful.
This was DRAGON from 2018 by 2022. When making an attempt to trace down any current updates (newer than August 30, 2022) to the DRAGON drone, New Atlas discovered that DRAGON did certainly evolve – kind of. It might probably now “stroll” about 8 inches (.2 meters) per step. However it’s not precisely a DRAGON any longer.
It is the College’s newest hybrid drone undertaking referred to as “Sensing, Processing, and Clever Dynamics for Aerial-ground Robotic,” or SPIDAR for brief. I assume it kind of seems the half.
College of Tokyo
Zhao’s SPIDAR is a wholly new design that not has the slithery DRAGON type. As a substitute, it is a multi-link, four-legged flying machine that may stroll OR fly utilizing thrust vectoring. It is nonetheless able to carrying important payloads above or under it, however not does it have that slinky-like maneuverability to articulate its approach by aerial gaps.
The aim of SPIDAR is to attain multimodal locomotion, significantly for troublesome terrain with restricted accessibility; the standard disaster relief kind situation.
Flying Crane: Aerial Greedy by Multi-limbed Flying Robotic SPIDAR primarily based on Vectored Thrust
The most recent replace the College has on SPIDAR was lower than two weeks in the past, demonstrating the robotic’s yoga ball prowess, so we all know it is not a seemingly deserted undertaking like DRAGON.
Perhaps as battery tech evolves, the DRAGON drone will return because the envy of all drones, snaking its approach by the skies, turning on and off industrial water valves all over the place. Even when DRAGON ended up being utterly ineffective, it nonetheless seems cool.
Supply: University of Tokyo JSK
