Whereas there are many potential uses for soft-bodied robots, the issues are nonetheless usually solely inbuilt small experimental batches. Scottish scientists are out to alter that, with a mass-production-capable gentle bot that’s 3D-printed in a single piece which then walks off of the print mattress.
Earlier than we go any additional, this is not the primary time we have heard a couple of gentle robotic that was printed in a single piece.
It was simply this March that we advised you a couple of hexapod bot created at UC San Diego, which was 3D-printed in a single steady 58-hour step. That robotic was powered not by a motor however by compressed air, which sequentially strikes its legs ahead.
The new quadruped robotic, designed by scientists at The College of Edinburgh, is likewise air-driven.
Not like the UC San Diego bot, nonetheless, it “solely” takes 9 hours to print. What’s extra, whereas the San Diego robotic was made utilizing a US$1,000 printer, the Edinburgh bot is made by a ~$500 open-source platform known as the Flex Printer, which is constructed from off-the-shelf parts.
The College of Edinburgh

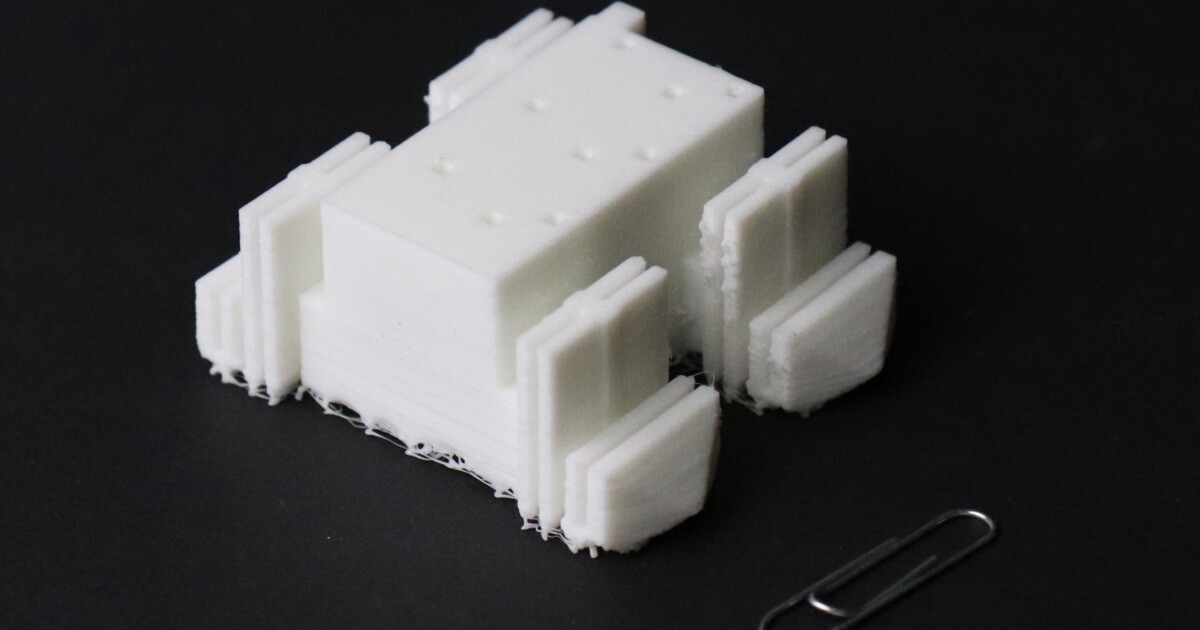

Like its American predecessor, the Scottish robotic is printed solely out of soppy, versatile thermoplastic polyurethane (TPU). That materials begins out as a filament which is heated to the melting level, then extruded out of a print nozzle to construct up the robotic’s physique in successive layers.
As a result of the molten TPU is so gentle, nonetheless, it is notoriously troublesome to work with. For one factor, as a substitute of mendacity in good straight (or curved) strains when being extruded, it tends to buckle off to at least one facet or the opposite. The scientists describe the extrusion course of as being like “attempting to push on a bit of string.”
Moreover, earlier than the molten TPU cools again to a firmer (but nonetheless elastic) consistency, the power of gravity causes it to droop. That is notably problematic when printing horizontally suspended bridge-like constructions, because the drooping motion may very well preserve the layers of TPU from connecting with each other and fusing collectively.
The buckling drawback was solved primarily by switching to a wider-diameter and thus sturdier TPU filament – 2.85 mm versus the extra frequent 1.75 mm. Doing so made the extruded materials seven instances harder to buckle, when it was tried.
The drooping drawback was addressed by truly turning the 3D-printing course of upside-down.
As a substitute of dropping the TPU down onto a print mattress, the Flex Printer’s nozzle pushes it up onto one, which the fabric sticks to till deliberately launched. On this means, gravity truly helps the layers of TPU fuse collectively, as every sticky new layer is pressed onto the hanging layer that got here earlier than it.
As soon as the printing course of is full, the print mattress is flipped over so the robotic is right-side-up.
The bot is then hooked as much as a tool often called a pneumatic ring oscillator, which delivers a pulsating 2.25-bar (32.6-psi) air present into channels inside the robotic’s physique. The air strain sequentially triggers two ligament actuators in every leg, which transfer the limb laterally, together with one foot actuator that lifts the limb off the bottom.
Delicate-bodied, 3D-printed, air-powered robotic in motion
Though the particular robotic made within the examine is basically only a demonstrator, it’s hoped that the open-source expertise might assist enhance the event of soft-bodied robots utilized in functions equivalent to exploration, medication, plus search and rescue.
“Utilizing our new platform, anybody can now simply print issues which have been beforehand considered unimaginable,” says College of Edinburgh engineer Maks Gepner, who led the examine together with Prof. Adam A. Stokes. “With out the long-standing manufacturing and design bottlenecks holding it again, we imagine gentle robotics is able to make a significant real-world impression.”
A paper on the analysis was lately revealed within the journal Device.
