How do you relocate a whole 8,270-ton, 43,380-sq-ft (4,030 sq m), 100-year-old Shikumen brick constructing advanced so you may construct a multi-level subterranean purchasing middle, car parking zone and subway connections below it? With robots, after all.

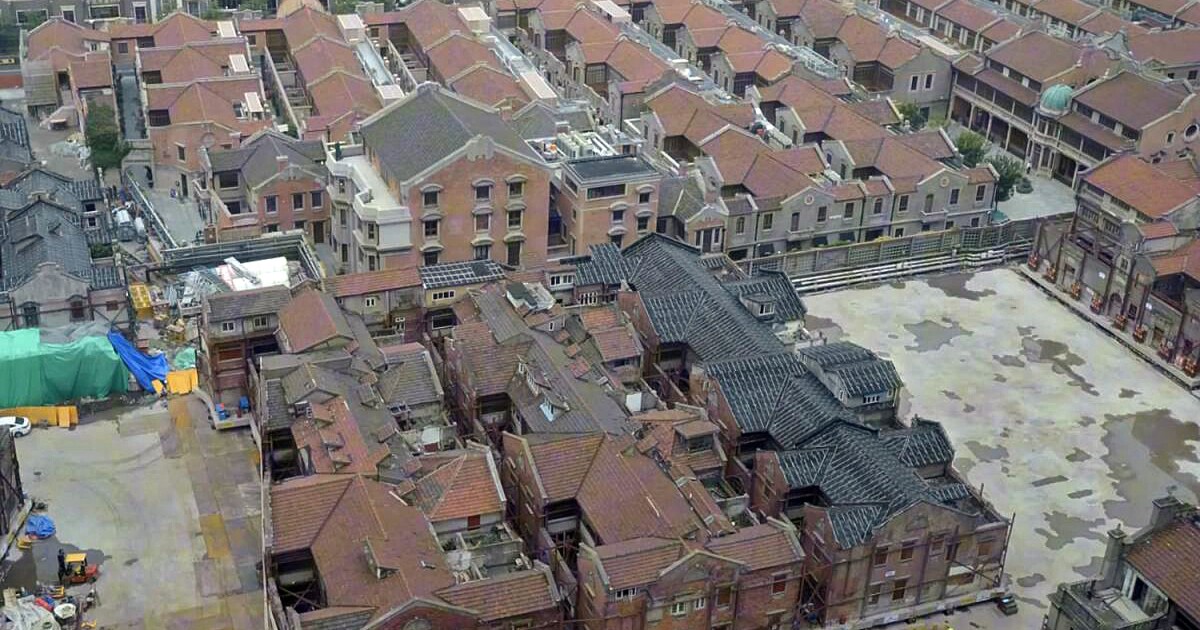

That is precisely what engineers of the Shanghai Building No 2 (Group) Co Ltd did in Shanghai, China. The Huayanli Shikumen-style advanced – a fusion of Western row-houses with Chinese language courtyards consultant of the city Chinese language middle-class – was constructed within the Nineteen Twenties and 30s and needed to be quickly relocated to make approach for the 570,500-sq-ft (53,000-sq m) underground growth.
To make it work, engineers used 3D scanning, self-guided drilling robots, hundreds of toes of conveyor belts to haul away dust and particles, and AI that would distinguish between soil constructions. The kicker was the 432 tiny hydraulic “strolling” robots that suspended the complete metropolis block above them as they clocked a scampering tempo of about three ten-thousandths of a mile per hour – or about 33 toes (10 meters) per day. There is a enjoyable timelapse video on the Shanghai government website.
The “strolling” robots in query are literally omnidirectional modular hydraulic jacks which might be able to lifting round 10 tons every. Sensors monitor strain, vibration, and alignment whereas a centralized AI management unit coordinates the steadiness and actions right into a synchronized crawl. I am unable to discover any particular details about what firm designed and constructed these robots for this undertaking, however would like to know.
The undertaking initially began in late 2023 once they relocated the block about 157 toes (48 m) west and 151 toes (46 m) north to make approach for the underground building – which has no definitive identify but. The stroll again “house” began on Could nineteenth of this yr and wrapped up a fast nineteen days in a while June seventh with the advanced lowered again onto its authentic foundations.
A whole bunch of robots transfer Shanghai metropolis block
This is not the primary time folks have moved giant constructions. Again in 1985, the Fairmount Lodge in San Antonio, Texas obtained chucked onto wheeled dollies and rolled six blocks down the street to a brand new house. It took six days to finish the transfer utilizing dump vehicles, a crane, and quite a lot of cable-and-pulley techniques – and nonetheless ranks primary within the Guinness Guide of World Data for heaviest constructing moved on wheels, tipping the scales at about 3.2 million kilos (1.45 million kg).
In 1930, Indiana Bell – the phone firm – pivoted its 8-year-old, 7-story headquarters 90 degrees sideways to make room to construct a brand new HQ. The craziest a part of all is that whereas rotating it, enterprise went on as standard with operators, workers and execs coming out and in. Gasoline, water, electrical energy, and importantly its phone service have been by no means disrupted in the course of the month-long lazy-Susan transfer.
It was one of many first instances officers elected to relocate a big constructing quite than destroy it.
Very like the transfer in China, engineers hoisted the increase with jacks, however rotated it 90 levels utilizing hydraulic rollers on 75-ton spruce beams earlier than plopping it again down onto its new basis. Sadly, the constructing was demolished in 1963 to make approach for a 22-story workplace constructing that – satirically – now homes AT&T.
One thing to consider subsequent time you see “WIDE LOAD” on a tractor-trailer carrying a small home down a freeway.
