Full-time four-wheel drive is a kind of annoying issues that’s nice to have till you really want it. At that time it stops working, until you undo one of many issues that lets it work nicely the remainder of the time.
I’m speaking about what occurs to a car that all the time drives all 4 wheels, when the going will get so slippery that one wheel spins on the spot. At that time, all the opposite wheels cease. Which isn’t what you’re hoping for.
They cease as a result of they’re pushed by particular gear units referred to as differentials, or diffs. A diff lets one engine drive two automobile wheels at completely different speeds. Three diffs let one engine drive 4 automobile wheels at completely different speeds. The completely different speeds are wanted everytime you’re turning a nook, as a result of the wheels on the skin should go additional than these on the within, and the ahead wheels will go additional than these on the rear.
If it weren’t for diffs, you wouldn’t be capable of flip your full-time 4WD. However no diff will drive any wheel if its reverse wheel (or axle) is spinning.
4-wheel drive automobiles constructed for very tough and slippery going get round the issue with differentials that lock. The locks may be switched on and off, and every stops a diff from working. You’ll be able to have interaction them for brief intervals whenever you don’t have to steer, or when the terrain is so unfastened you could steer by skidding.
What if you happen to changed the differentials with one thing that permit the pushed wheels flip at completely different speeds, like a diff does, but in addition prevented the wheels from spinning, like a diff-lock does? That’s the concept behind a revolutionary 4WD system dreamed up by an engineer in Germany, and proven for the primary time lately at Agritechnica, a significant farm equipment exhibition in Hanover.
At this level the Line Traction system has been optimized to be used on 4WD agricultural automobiles that want to barter very steep, very tough, or very sloppy surfaces, and at Agritechnica it drove a prototype tractor constructed by Swiss model Aebi.

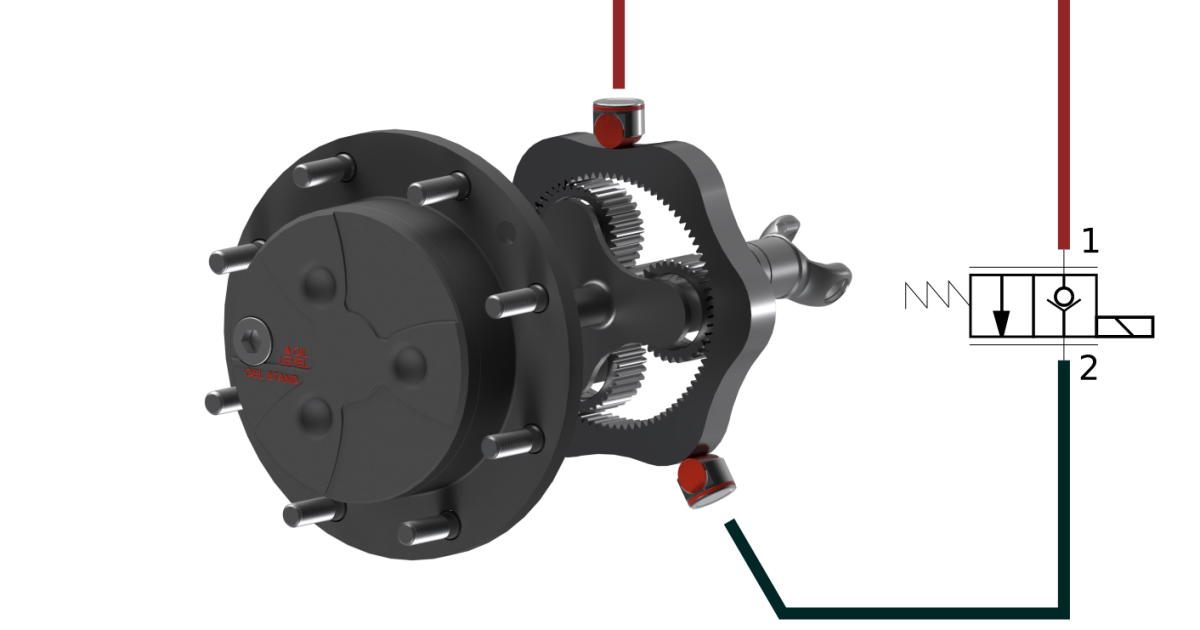

It does away with differentials and as an alternative locations a set of planetary gears at every wheel. A shaft from the engine turns the planetary gears, which drive an internally toothed, outer ring gear. The ring gear is affixed to a hub, and the hub turns the wheel.
What’s most revolutionary concerning the system is the best way during which the ring gear is tied to the hub: it connects by a hydraulic circuit. The circuit can repair it in place or can let it rotate, and its rotation velocity may be managed.
Rotation of the ring gear permits the wheel to show extra slowly than the driveshaft, whereas receiving the entire drive. Hub speeds are adjusted robotically, with no particular enter required from the driving force.

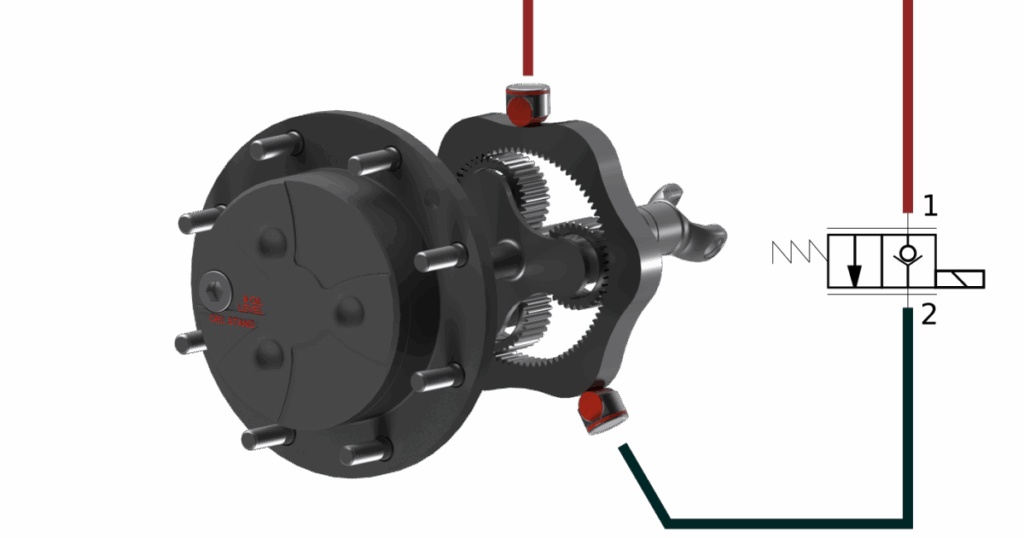

The builders describe operation this fashion: “When the ring gear is totally locked, no oil flows. The locking is managed by a software-controlled proportional valve. On this state, the Line Traction transmission behaves like a traditional planetary gear with a set ratio.
“When cornering, the proportional valve is opened in a focused method in order that oil circulates throughout the system. This releases the ring gear in a managed method, which – as a result of transmission geometry – results in a velocity overlap.
“In consequence, the planet service to which the respective wheel is hooked up slows down. By recording the wheel speeds, a management loop may be closed to manage every wheel velocity individually.
“The outermost wheel within the curve is known as the ‘grasp’ within the Line Traction system. For this wheel, the ring gear all the time stays fully fixed. The related proportional valve is totally closed. For the opposite wheels, that are to run at lowered velocity within the curve, the proportional valves are opened till the respective goal velocity is reached.”
How does Line Traction know the way a lot to gradual the opposite wheels?
“By repeatedly monitoring the steering angle and taking the car’s geometry under consideration, the monitoring strains are calculated in actual time. Mixed with the velocity specified by the driving force, this leads to goal speeds for every wheel, which function enter parameters for the Line Traction System to manage the wheel speeds.”
It seems that Line Traction additionally makes use of a sensor-informed suggestions loop that screens exterior stress on the parts, permitting it to compensate for calls for on the wheels that its management software program hadn’t predicted.
The result’s a full-time 4WD system that dispenses with diffs and diff locks, and that behaves like one which – impossibly – is utilizing each concurrently. All wheels drive on a regular basis. Even when two wheels are off the bottom, they are going to proceed to rotate at their prescribed speeds whereas the grounded wheels propel the car.
An additional profit claimed for Line Traction is much less injury to what’s being pushed over. Wheels can’t spin (until all do), and the car can all the time flip with out skidding. The system is powerful sufficient that automobiles may be pushed in 4WD on sealed roads.
Line Traction can also be claimed to simplify driveline engineering, and if that sounds unlikely, check out the insides of a diff. And it reduces calls for on the driving force, who doesn’t have to consider which diff locks to interact, and when to interact them.
The system’s inventor, Werner Muller, patented his concept in 2015, and developed it in collaboration with engineers on the Karlsruhe Institute of Expertise, in Germany’s south-west. Line Traction received a gold award for innovation at Agritechnica 2025, and it’s anticipated to see manufacturing quickly propelling Aebi’s Terratrac tractor, geared toward use on steep slopes.
Many fashionable SUVs that drive all wheels deal with the wheelspin downside with options which are much less intrusive – if finally much less efficient – than diff locks. Generally, for instance, a traction-control system limits wheelspin by braking particular person wheels. Some producers of superior electrical vehicles dedicate a motor to every wheel, once more utilizing software program to regulate speeds because the automobile turns.
Line Traction publicity says it’s “versatile and prepared for brand spanking new car ideas”. It’s not clear whether or not functions exist exterior heavy equipment, on condition that the hub-mounted gear-sets possible add unsprung weight that would degrade suspension efficiency – amongst different potential drawbacks. In its preliminary market, nonetheless, it appears to resolve successfully, and effectively, a long-standing downside.
