Who might presumably evaluate to Superman, the Man of Metal? Undoubtedly not a person of plastic! Proper? Improper. Researchers on the College of Sharjah, UAE, have found that plastics, in sure shapes, could carry out in addition to metal bars as reinforcement supplies in concrete.
In a examine that was as a lot in regards to the form of the fabric as the fabric itself, the researchers 3D-printed and examined numerous materials configurations, discovering that sure shapes outperformed others by as much as 500% in particular assessments.
Concrete, which primarily includes cement, water, and aggregates, is probably the most used development materials on the planet. This composite is usually upgraded with metal reinforcement to a stronger model known as bolstered concrete.
Over the previous century, metal has confirmed to be a extremely efficient concrete reinforcement materials, a lot in order that greater than 20% of the just about 2 billion tonnes of world metal produced yearly is used to bolster concrete.
Now, regardless of its movie star and effectiveness, metal presents quite a few drawbacks. For starters, it’s heavy. A cubic yard of bolstered concrete sometimes comprises 150 to 250 kilos (68 to 113 kg) of metal; figures can rise to properly over 300 lb (136 kg) in closely bolstered functions. Metal can also be vulnerable to corrosion, which may compromise structural integrity over time.
Lastly, metal has an infinite environmental footprint. Its manufacturing, from mining and refining to shaping, transporting, and assembling, requires huge quantities of power. This energy-intensive course of contributes considerably to greenhouse gasoline emissions, making metal one of the carbon-intensive supplies in development.
Given all these downsides, researchers have been growing various reinforcement supplies, reminiscent of glass fiber-reinforced polymers and carbon fiber-reinforced polymers, for years.
The College of Sharjah researchers turned to a much more accessible however much less doubtless materials: polylactic acid (PLA), a biodegradable thermoplastic. Within the examine, the researchers targeted not solely on the fabric but in addition on the form of the reinforcements.
Cylindrical bars have been the go-to form for each metal and its options. However what do different shapes have to supply? This is among the main questions the researchers got down to reply.
Utilizing 3D printing, they produced flat, platelike constructions and wavy, serrated, and triangular patterns designed to grip the concrete extra successfully and enhance stress switch. They then examined these shapes towards historically straight PLA bars. The findings have been excellent, with the unconventional shapes considerably outperforming extra conventional bars.
“Plates outperform bars. Beams bolstered with PLA plates achieved as much as twice the height load capability and absorbed as much as 5 instances extra power (toughness) than these utilizing easy PLA bars. The elevated floor space of the plates allowed for a a lot stronger bond with the concrete,” defined Dr. Muhammad Junaid, head of the analysis.

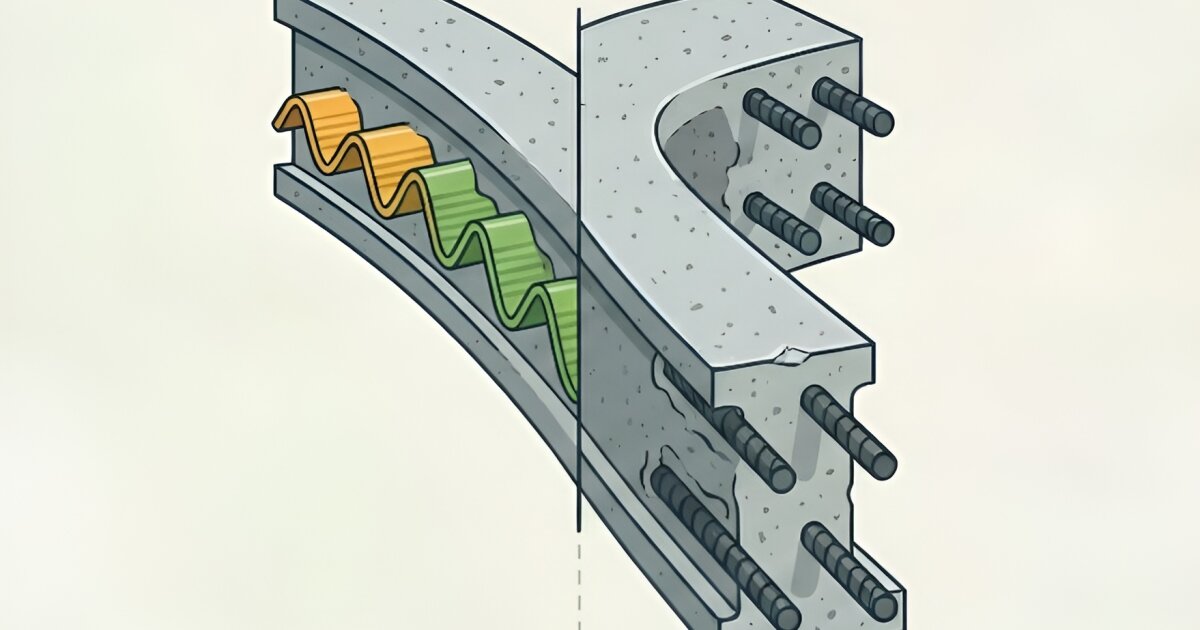

College of Sharjah
The examine revealed within the journal Construction and Building Materials additionally revealed that the triangular and wavy types considerably enhanced the beam’s means to deal with post-cracking stress. “These serrated shapes acted like tooth, locking into the concrete to stop slipping,” Dr. Junaid defined.
In PLA vs PLA assessments, the plates and the wavy reinforcements outperformed their bar counterparts. However how did they maintain up towards metal? Fairly properly. The researchers discovered {that a} mixture of shapes, forming triangular wavy plates, was best. Concrete bolstered with these plates matched its steel-reinforced counterpart in ductility. The triangular wavy PLA plates additionally achieved as much as 80% of the bending power of a conventional steel-reinforced beam. Not dangerous in any respect, contemplating the extra advantages.
Metal has been utilized in development concrete for fairly a while now, and we most likely will not see it vanish any time quickly. Nevertheless, the examine demonstrated yet one more probably viable various for sure functions. PLA is biodegradable, corrosion-resistant, a lot lighter than metal, and customarily far more sustainable. There’s additionally the customization on demand angle utilizing 3D printing. It is very important observe, nonetheless, that the examine was accomplished utilizing small-scale prototypes.
Supply: University of Sharjah by way of AlphaGalileo
