Researchers on the Georgia Institute of Know-how have created a passive movement/contact sensor that detects movement utilizing solely sound. With out electrical energy, electronics, or batteries. The sensors are small, uniquely formed metallic tags that every emit very particular ultrasonic sounds upon contact. They’re smaller than a penny and price only some cents every.
Most sensible house sensors require some type of energy to operate. Both they’re completely plugged in or require a battery. Sensors that require direct energy are extremely restricted in the place they are often positioned. Battery-powered sensors, alternatively, should be frequently recharged or have their batteries changed.
The researchers discovered a a lot less complicated strategy to construct sensing know-how. Their invention is a small, flat, light-weight metallic tag that is principally a hollowed-out ring. Type of like a washer however with varied cuts on its outer circumference.
Georgia Tech
The physics behind these tags is easy however ingenious. Most objects make a sound once you strike them, with their form and materials figuring out how they sound. Metals are significantly sonorous, as anybody who has been round toddlers (and pots and pans) can testify.
The researchers took odd metallic rings and exactly formed them into particular patterns designed to supply distinct ultrasonic frequencies when struck. To create these patterns, they developed a modeling and simulation software that generated ring geometries matched to particular frequencies. Utilizing the software, the staff recognized greater than a thousand distinctive designs, every able to producing its personal ultrasonic tone.
They then fabricated a few of these designs, creating 15 distinct metallic tags, every with its personal distinctive ultrasonic “fingerprint.” When a tag is struck, a wearable mic, akin to a smartwatch or cellphone, picks up the sound, and accompanying software program identifies precisely which tag was struck primarily based on its distinctive signature.
“These distinctive fingerprints can be utilized for sensible house sensing, or what we name ‘exercise recognition,’” mentioned Yibo Fu, PhD scholar and chief of the analysis staff.
An attention-grabbing characteristic of the tags is that they preserve a excessive signal-to-noise ratio. Because of this even in noisy environments, the alerts stay clearly perceptible to the mics.
The complete sensor is a three-part machine consisting of a metallic tag, a plastic base on which the tag sits, and a small, separate plastic tab that strikes the tag. The sensor is designed for areas the place there’s pure recurring contact between two surfaces or components of an object. For instance, a door, a window, or a rest room seat.

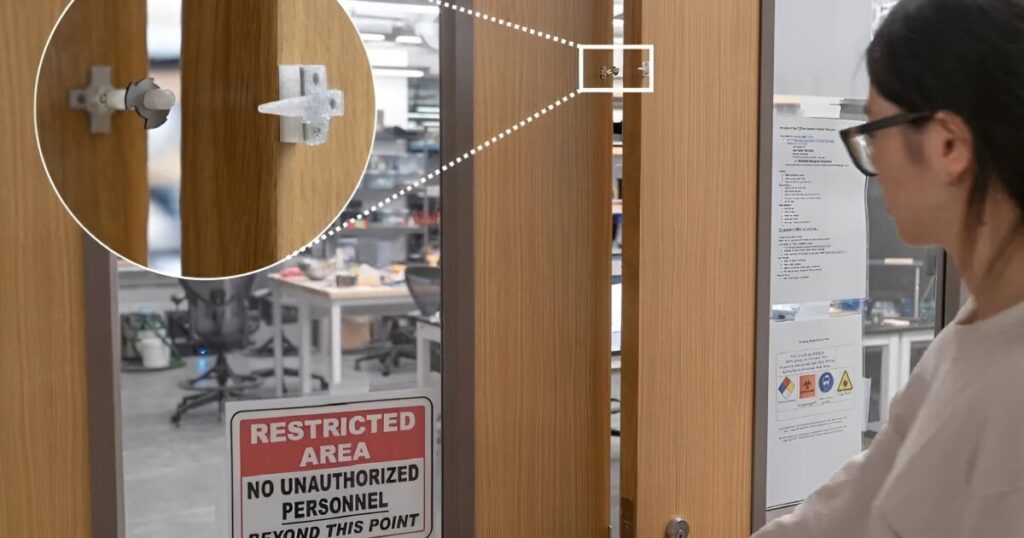

This is the way it works, utilizing the door instance: the plastic base with the mounted metallic tag is connected to the door body. The plastic tab is connected to the shifting door ready that aligns it intently sufficient to contact the metallic tag. Each time the door is opened or closed, the tab strikes the tag, producing a definite ultrasonic sound that’s picked up by a close-by microphone. As a result of the sound is exclusive, a consumer can inform precisely which door was opened.
The identical setup might be utilized to taps, rest room seats, drawer doorways, and so forth. They’d additionally work nice within the fitness center for counting reps.
Georgia Tech
In a current Instagram video, Fu offered the tags to the general public, detailing how they labored and potential use instances. The video went viral, garnering virtually two million views, a sign that the researchers had an attention-grabbing product on their palms. Among the many tons of of feedback, folks proposed varied different attention-grabbing use instances for the tags.
“One talked about utilizing the tags in archiving methods the place you will have big cabinets and libraries of containers. Once you take away a field or retailer a brand new field, there is a speedy movement, and you’ll set off the tags and know precisely what factor you simply opened, closed, or archived. Another person talked about monitoring areas for hundreds of rubbish and recycling bins in waste administration methods,” says Fu.
Whereas they don’t seem to be high-tech or feature-rich, the tags are extremely useful and sensible for a lot of use instances. Plus, ultra-cheap, maintenance-free sensing that might quietly function for years with out ever needing a battery alternative or wired connection is certainly a sure.
These tiny ultrasonic tags may at some point allow large networks of low-cost sensors embedded into properties, buildings, warehouses, and public infrastructure, all with out including to the rising burden of battery waste and energy consumption.
A paper on the analysis was lately printed within the journal Proceedings of the ACM on Interactive, Mobile, Wearable and Ubiquitous Technologies.
