In 2025, data centers consumed 485 TWh of electricity. Thirty p.c of that, greater than all the annual energy consumption of Sweden, went to cooling. Scientists have developed a 3D-printed copper-plate cooling tech that may slash this determine by over 90%!
The expertise combines a mathematical algorithm with 3D printing to create pure copper cooling plates that dramatically outperform typical chilly plates utilized in direct-to-chip cooling methods. In response to the researchers from the College of Illinois Urbana-Champaign, making use of the expertise throughout a whole information middle might cut back cooling-related electrical energy consumption from roughly 30% to only 1.1%.
The AI growth has pushed information middle electrical energy consumption to staggering ranges, to the purpose that firms are contemplating constructing information facilities in area to realize extra direct entry to photo voltaic vitality! What makes AI’s energy demand extra placing is that one-third of this energy has completely nothing to do with computation. All of it goes to cooling the {hardware}. A single NVIDIA GB200 chip runs at 1,200 watts, consuming 28.8 watt-hours of electrical energy every day. That is roughly equal to the average daily consumption of a US household, calculated from the full yearly consumption. One chip. However that is not even our ache level.
On account of a phenomenon often known as Joule heating – an unavoidable consequence of how they function at a elementary stage – chips dissipate nearly precisely the quantity of energy they devour as warmth. Due to this fact that GB200 chip additionally dissipates 1,200 watts of warmth. Over an hour, that’s sufficient vitality to theoretically boil over 50 cups of water. Once more, one chip.
Now think about hundreds to tons of of hundreds of those chips stacked in racks, as they’re in massive AI information facilities. With out intervention, xAI’s Colossus 1 information middle with its 220,000 GPUs and 300 MW consumption would generate sufficient warmth to boost the temperature of the 785,000-sq-ft area to 1200 °C (2192 ºF) in a single hour, hotter than molten lava. That is why cooling is an important, non-negotiable side of working information facilities. Cooling methods require electrical energy.
“Cooling is the bottleneck in computer-chip design,” says Behnood Bazmi, mechanical engineer and the paper’s first creator. “By bridging the hole between computational design and manufacturing functionality, our method gives a pathway for extra energy-efficient liquid cooling of chips and different electronics.”
Historically, information facilities have relied on air cooling to stop pc chips from overheating. In these methods, steel warmth sinks are mounted straight onto CPUs and GPUs, permitting warmth to unfold out throughout skinny steel fins whereas highly effective followers blow air throughout them. This technique consumes massive quantities of electrical energy as a result of services should energy a number of massive air-handling items. Moreover, fashionable AI accelerators are producing warmth at ranges that typical air cooling is more and more struggling to deal with effectively.
Consequently, newer methods are shifting towards liquid-based direct-to-chip cooling, wherein a steel “chilly plate” is mounted straight onto the processor and coolant flows by way of microscopic inside channels throughout the plate. Warmth from the chip transfers to the steel plate and is then carried away by the circulating liquid much more effectively than air can.
Standard chilly plates exist already commercially, however their inside fins and fluid channels are usually designed round manufacturing simplicity moderately than most thermal efficiency, typically utilizing comparatively easy rectangular or cylindrical geometries and supplies equivalent to aluminum alloys or stainless-steel.

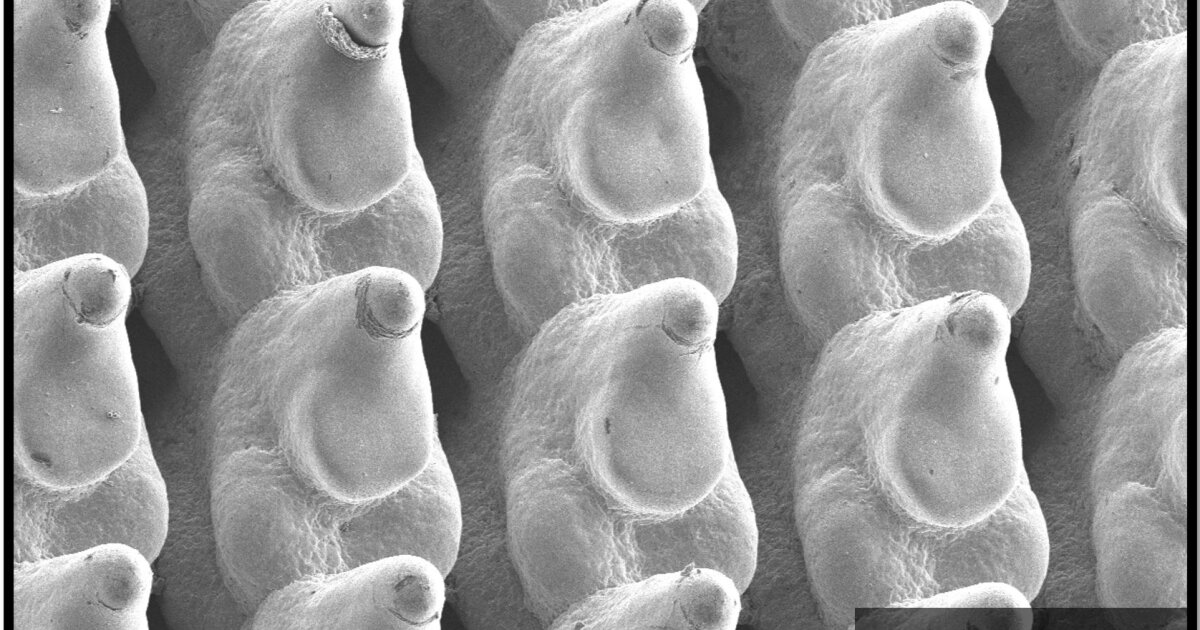

The researchers’ resolution addressed two important facets of present applied sciences: materials and fin design. In a way often known as topology optimization, the researchers used a mathematical optimization algorithm to revamp the tiny inside fin constructions from the standard rectangular or cylindrical geometries into much more advanced, jagged, and pointed shapes that maximize warmth switch and thermal efficiency, whereas minimizing the pumping effort required to maneuver coolant by way of the plate.
As a result of the intricate geometries they arrived at could be tough to fabricate conventionally, the workforce used a complicated additive manufacturing method, electrochemical additive manufacturing (ECAM), to construct the constructions layer by layer. They chose pure copper, a fabric prized for its exceptionally excessive thermal conductivity however notoriously tough to manufacture into extremely detailed varieties utilizing conventional 3D printing strategies. One more reason for the ECAM route.
“ECAM can manufacture pure copper components with very wonderful element – all the way down to 30 to 50 micrometers, lower than the width of a human hair,” says Nenad Miljkovic. senior creator and mechanical engineer.
The researchers reported that their optimized copper chilly plates delivered as much as 32% higher cooling efficiency than typical chilly plates in liquid cooling, whereas additionally decreasing stress drop by as a lot as 68%, that means considerably much less vitality was required to pump coolant by way of the system. Collectively, these achievements translate to vital vitality financial savings.
On the data-center scale the place air-cooling nonetheless dominates, the workforce estimated {that a} 1 GW facility utilizing typical air cooling might require roughly 550 MW of extra energy devoted to cooling infrastructure alone. Against this, their optimized liquid-cooling method would scale back that cooling overhead to round 11 MW. In different phrases, cooling might drop from roughly 30–35% of a knowledge middle’s whole vitality consumption to shut to 1.1%, a stark discount of over 95%, whereas nonetheless dissipating the intense warmth generated by fashionable AI {hardware}.
If these projections will be replicated at actual hyperscale, the implications for information middle effectivity might be monumental. The researchers’ figures would translate to a Power Usage Effectiveness (PUE) of roughly 1.011, that means practically each watt drawn from the grid would go on to computation moderately than to cooling overhead. This determine assumes different help infrastructure consumption to be negligible. For context, an ideal information middle would have a PUE of precisely 1.0, a theoretical very best the place no vitality in anyway is wasted on cooling, pumps, lighting, or different supporting infrastructure.
Lots of the world’s most superior hyperscale services usually function at round 1.1 to 1.3. Reaching one thing near 1.01 at AI-scale compute densities would subsequently signify an awfully environment friendly facility, approaching the sensible limits of contemporary thermal engineering. That mentioned, the researchers’ full information middle vitality figures stay modeled projections moderately than demonstrated outcomes from a reside gigawatt-scale deployment. Nonetheless, if the expertise scales as recommended, it might considerably cut back one of many largest hidden vitality prices within the AI growth.
The researchers imagine their method, encompassing design optimization and manufacturing strategies, might be tailored for a variety of cooling functions throughout electronics and past.
Supply: Cell Press via EurekAlert
