If an object that is composed of two forms of materials goes to fail, the break will normally happen on the interface the place the 2 meet. A brand new kind of light-activated 3D printing resin addresses that drawback, by progressively morphing from laborious to mushy states inside a single object.
Developed by Asst. Prof. Zak Web page and colleagues from The College of Texas at Austin, the liquid resin was impressed by pure supplies corresponding to inflexible bone which easily melds with versatile cartilage.
The substance incorporates an epoxy–acrylate monomer mixed with a photosensitizer compound. It is utilized in a kind of 3D printing often called digital gentle processing (DLP), through which centered patterns of sunshine are shone by way of the clear sides of a vat of photosensitive resin – doing so causes choose areas of the resin inside to polymerize into layers of stable materials.
When an space of the new resin is uncovered to violet-colored gentle, the resin in that area types right into a stable but stretchy rubber-like materials. Alternatively, wherever the resin is uncovered to extremelyviolet gentle, the photosensitizer in that space causes it to tackle a tough, inflexible consistency.
And importantly, by softly mixing the boundary line between the 2 forms of gentle, it is doable to likewise progressively transition from mushy rubber to laborious polymer inside a single print job.
“Nature does this in an natural means, combining laborious and mushy supplies with out failure on the interface,” says Web page. “We needed to duplicate that.”

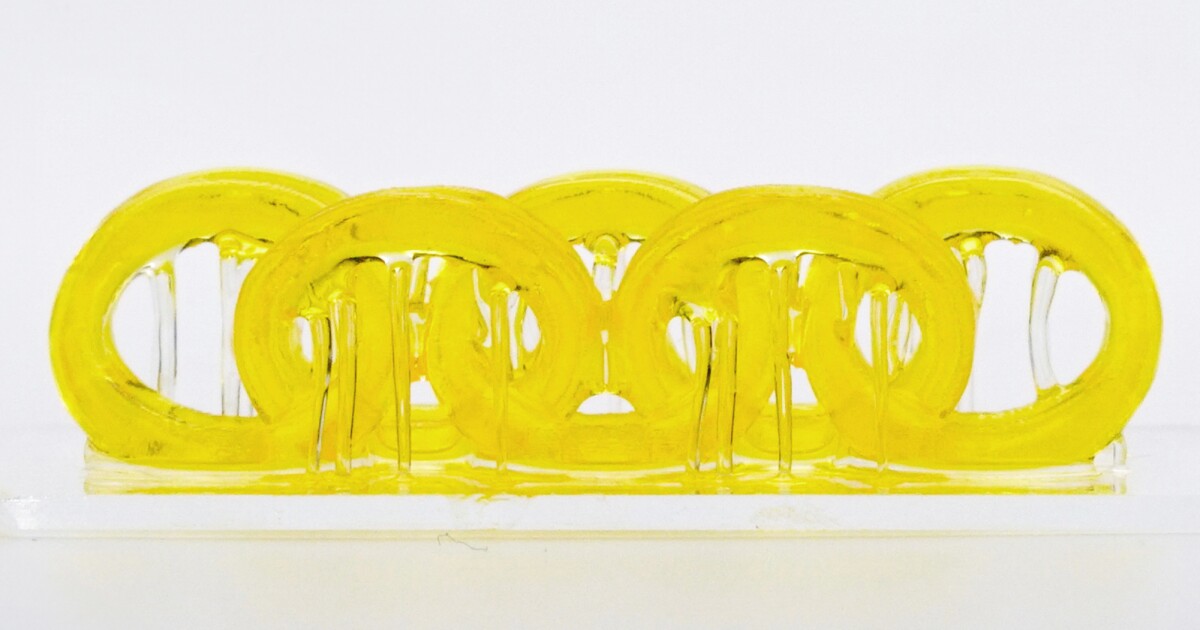

The know-how has to date been demonstrated in 3D-printed gadgets corresponding to a shock absorber consisting of laborious springs embedded in a mushy cylinder; a stretchable digital system with a inflexible part to forestall an embedded gold wire from breaking; and a mannequin knee joint that includes each inflexible bones and stretchable ligaments.
Attainable future purposes may embody surgical coaching fashions, wearable sensors, or maybe even soft-bodied robots.
Mannequin knee joint made out of single dual-nature 3D-printing resin
It ought to be talked about that scientists at Case Western Reserve College beforehand developed a somewhat similar material, impressed by squid beaks, which might be made tougher or softer by various the quantity of sunshine it is uncovered to.
And extra just lately, researchers from the College of California Santa Barbara and the Lawrence Livermore Nationwide Laboratory created a resin that may type a everlasting or dissolvable stable, relying on whether or not it is uncovered to ultraviolet or seen gentle.
A paper on the UT Austin resin was just lately revealed within the journal Nature Materials.
