A patent filed in 1985 is being dusted off as a supply of inspiration for a brand new 3D-printed triangular-shaped zipper that seamlessly fastens chairs, tents, robots and purses, making them easier to pack and arrange simply with a press of a button.
In 1985 William Freeman, then {an electrical} engineer at Polaroid however now an MIT Professor of Electrical Engineering and Laptop Science, responded to an advert positioned by the Progressive Design Fund in Scientific American. That advert provided help of as much as $10,000 for modern options for the clothes, housewares and textiles business.
Freeman got here up with the three-sided zipper, which functioned similar to a daily zipper however pulled up right into a triangular tube that might simply remodel gadgets like chairs, tents and purses from mushy type to full dimension making them easier to hold and arrange.
His proposal was rejected however Freeman patented his prototype anyhow, with the hope that the idea could be revisited sooner or later.
Constructing on his idea, researchers at MIT CSAIL (Laptop Science and Synthetic Intelligence Laboratory) have now give you an automatic and adaptable fastener referred to as the “Y-zipper.”
Tim Malieckal/MIT CSAIL
“A daily zipper is nice for closing up flat objects, like a jacket, however Freeman ideated one thing extra dynamic. Utilizing present fabrication know-how, his mechanism can remodel extra advanced gadgets,” says MIT postdoc and CSAIL researcher Jiaji Li, lead writer of an open-access paper on the undertaking “We’ve developed a course of that builds objects you possibly can quickly shift from versatile to inflexible, and you may be assured they’ll work in the true world.”
CSAIL’s 3D software program modeling program aids customers in envisioning how the Y-zipper will seem when zipped up whereas selecting customizations such because the size of every strip, the course and angle it curves, as effectively the way it will seem when straight, bent, coiled or twisted earlier than printing a 3D mannequin utilizing plastics.
The researchers stress-tested two varieties of plastic compounds generally utilized in 3D printing: polylactic acid (PLA) and thermoplastic polyurethane (TPU) with a machine that bent the Y-zippers, discovering that PLA dealt with heavier masses higher, and TPU was extra malleable.
The staff additionally machine-tested the Y-zipper by way of a cycle of constantly opening and shutting to examine its endurance restrict earlier than it snapped, reaching about 18,000 cycles. 3D software program modeling confirmed that the elastic part was key to serving to disperse the stress of massive masses.

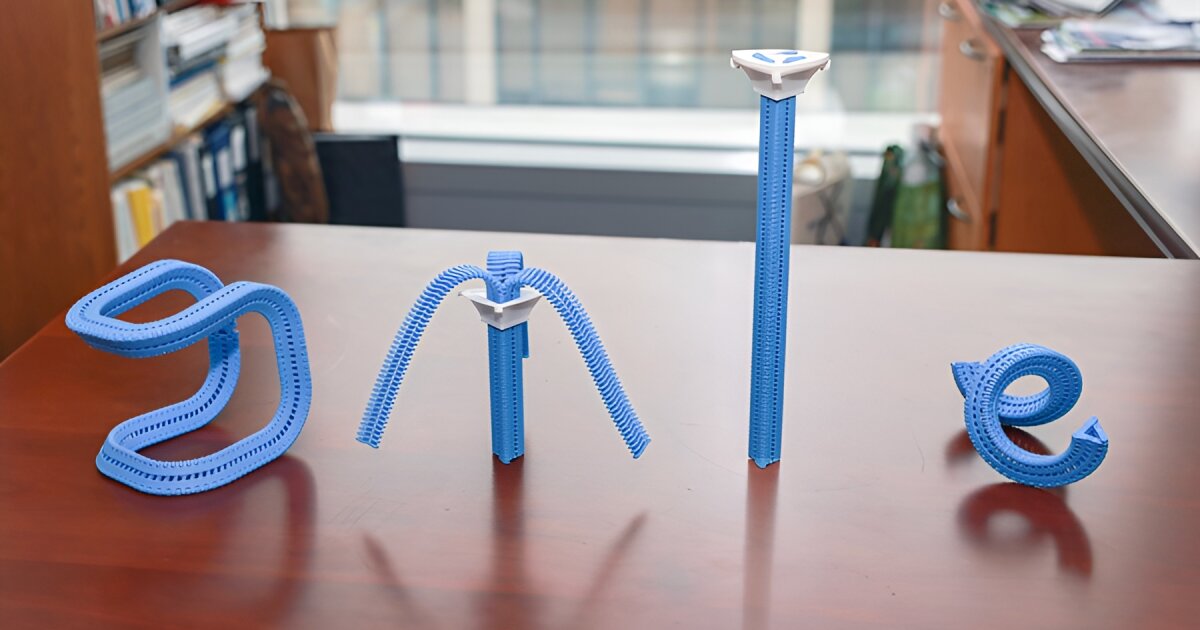

When the Y-zipper is undone it resembles a three-tentacled squid, and when zipped up it varieties a rod-like construction. It may have helpful purposes similar to in tenting gear, with straightforward and quick pitching of a tent that usually can take “as much as six minutes to do alone” however with the Y-zipper pares right down to below two minutes.
Tim Malieckal/MIT CSAIL
The Y-zipper may very well be helpful within the medical subject. Researchers wrapped the Y-zipper round a wrist forged so the affected person may modify usually rigid gear to be extra comfy throughout daytime or evening time utilization relying on their wants.
Different purposes would possibly embrace robotics, similar to adaptive robotic quadrupeds. The robotic may adapt the scale of its legs both by zipping for top or unzipping for reducing down, which may very well be useful for the robotic to handle exploring uneven surfaces similar to forest areas or canyons.
The staff additionally constructed artwork installations with the Y-zipper, creating a protracted winding mechanical flower with a static motor that zipped up the set up imitating a flower in “bloom.”
Li states there are nonetheless different purposes through which the Y-zipper may very well be useful, similar to area exploration the place a built-in arm attachment may very well be used to assemble rock samples, or in buildings that may be constructed rapidly similar to emergency shelters or medical tents to be used throughout catastrophes and rescues.
Y-Zipper: 3D Printing Versatile-Inflexible Transitions in One Click on
Supply: MIT
