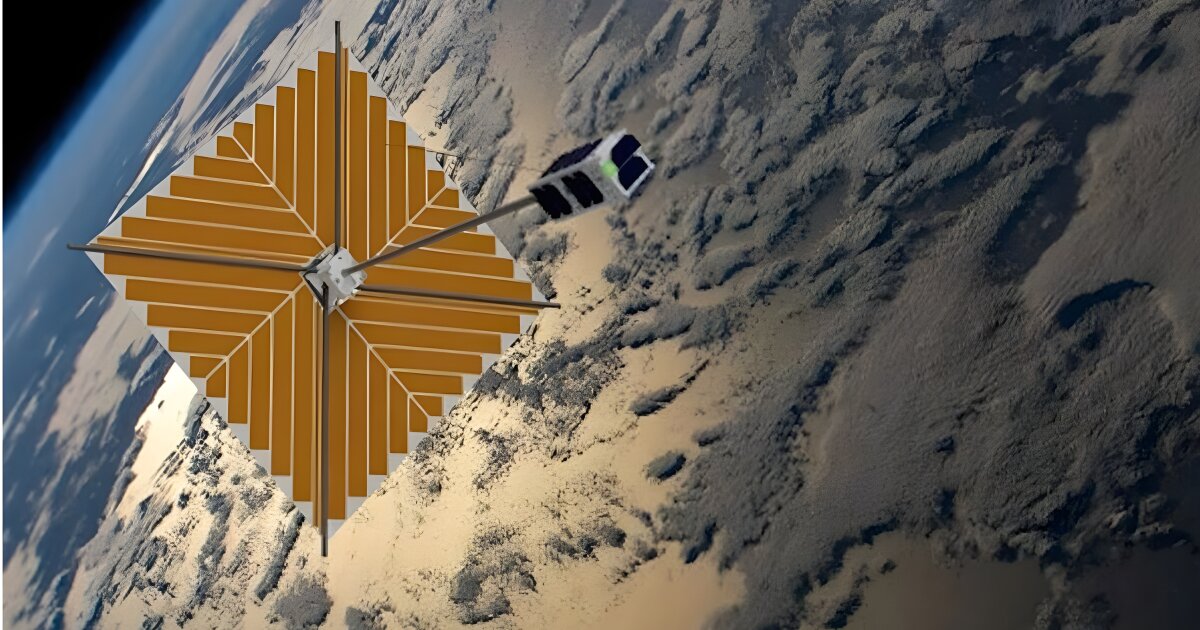

On April twenty third, the Japan Aerospace Exploration Company (JAXA) launched a number of satellites into low-Earth orbit together with a 10-cm (3.9-inch) “origami” dice satellite tv for pc with a reflectarray antenna that unfurls, origami-like, to 25 instances its measurement when folded.
As the newest part of JAXA’s Progressive Satellite tv for pc Know-how Demonstration Program, at round 53 minutes after launch from New Zealand, the Kakushin (“innovation”) Rising mission orbitally deployed eight small satellites right into a sun-synchronous orbit 336 miles (540 km) above Earth to additional earthquake detection by way of electromagnetic precursors, ocean-monitoring, ultra-small digicam multispectral images, and different targets.
As New Atlas has previously explored, making use of the ideas of origami and the associated artwork of kirigami (during which the folding materials could be reduce and reattached with glue or fasteners) has a protracted historical past within the industrial design of Japan and different international locations.
Dr. Miura Koryo’s 1970 “Miura fold” design – utilized in massive highway maps for simple storage and use – arose throughout analysis into creating space-deployed constructions, and operated in Japan’s 1995 House Flyer Unit (SFU) satellite tv for pc for orbital commentary and experimentation. Saved Miura-style throughout flight, the SFU’s photo voltaic panels simply unfolded in orbit, and have been a mannequin for subsequent SFU photo voltaic panel design ever since.
テレストレラッソ/C.C. 4.0
Comparable designs underpin photo voltaic sailors, which Japanese designers name “area yachts” (referring to non-motorized yachts with sails), utilizing photon-pressure in opposition to a photo voltaic sail as a substitute of wind for propulsion, thus enabling area transit with out rocket gas (and even engines). In 2010, JAXA launched the first-ever small solar sailor IKAROS (Interplanetary Kite-craft Accelerated by Radiation Of the Solar) which travelled 50,200 miles (80,800 km) to Venus utilizing its origami-folded sail.
Given the huge expense of launching something into area, all space-seeking nationwide governments, corporations, and organizations are keen to save cash any approach they will. CubeSats, together with these with Miura-folded mechanisms, provide huge financial savings. Back in the year 2000, the fee to construct an strange climate satellite tv for pc was $US290 million, and a spy satellite tv for pc $390 M (not together with upkeep), and extra $10 M to $400 M to launch.
On a big rocket, launch-cost-per-pound was greater than $4,000, and on a small rocket $14,000. With its 60 toes (18 m)-long S-band antenna and photo voltaic panels spanning 106 toes (32 m), the 2009 business communication satellite tv for pc TerreStar-1 weighed 15,233 lb (6.91 tonnes), value $350 M to construct and insure, and needed to pay $165 M just to ride an Ariane 5 rocket.
JAXA
However teams of university students can develop CubeSats – which might weigh as much as 22 lb (10 kg) and as little as 2.2 lb (1 kg) – for only some thousand {dollars} in a brief improvement and manufacturing cycle, and are gentle sufficient to be launched even from rockoons (rockets lifted to excessive altitude by stratospheric balloons) equivalent to Zero 2 Infinity’s in-development Bloostar. If viable, Bloostar will have the ability to raise a 308-lb (140-kg) payload right into a 125-mile (200-km) low-Earth orbit, or 165 lb (75 kg) to a 375-mile (600-km) Solar-synchronous orbit.
JAXA’s satellite tv for pc origami-folded antenna employs expertise with a historical past stretching again to the “chrome” period of the Soviet-US area race. It’s a low-cost reflectarray antenna, completely different from a conventional reflector antenna, which operates at high-gain for orbital and outer-space missions. Utilizing a feed factor (such because the rod in a parabolic dish antenna), a reflectarray can management the part of the mirrored discipline throughout its hooked up, passive, planar reflector floor to provide a focussed beam.
JAXA
The April 23 Kakushin Rising mission marks the second time in 5 months that JAXA has used personal area firm Rocket Lab to launch satellites. With headquarters in Lengthy Seashore, California, Rocket Lab can launch autos from the USA in addition to from its A and B launch pads on New Zealand’s Mahia Peninsula for its partly-recoverable, smaller payload, two-stage Electron rockets.
“Two profitable missions in a matter of months, deployed exactly the place they wanted to be,” says Rocket Lab founder/CEO Sir Peter Beck, “exhibits precisely why Electron is the popular small launcher for nationwide area companies” in a global CubeSat industry worth $355 M.
Rocket Lab
The corporate’s web site boasts of being an “end-to-end area firm” providing “dependable launch providers, spacecraft, satellite tv for pc elements, and on-orbit administration,” having deployed greater than 250 satellites, and dealing with US authorities companies equivalent to NASA, House Pressure, and DARPA, in addition to corporations equivalent to Canon and Unseenlabs.
You’ll be able to see extra about JAXA’s origami CubeSat within the following Japanese-language video.
「革新的衛星技術実証4号機」が拓く未来の技術－折り紙リフレクトアレーアンテナ実証衛星 OrigamiSat-2
Sources: JAXA, Rocket Lab
