Think about looking the window of an airborne airplane and seeing the wing rippling and twisting. You will in all probability have a mini coronary heart assault. But, that is what German engineers have created: prototype morphing wings that change their form mid-flight.
Created by the German Aerospace Middle (Deutsches Zentrum für Luft- und Raumfahrt; DLR), the undertaking, aptly named morphAIR, goals to make plane extra environment friendly and simpler to regulate.
Most creatures that transfer by way of air or water show outstanding fluidity and adaptableness in movement. Birds, for instance, are able to extremely exact, advanced changes throughout their complete wing. Likewise, their aquatic counterparts, fish, transfer their our bodies and fins with a grace that might rival even essentially the most seasoned ballet dancer.
Then again, airplanes have historically relied on inflexible wings and glued management surfaces, utilizing flaps, ailerons, and rudders to vary path. These separate movable elements add mechanical complexity, weight, noise, upkeep calls for, and aerodynamic losses.
So why have these wings remained the usual for many years, when it is apparent they aren’t optimum for maneuvering? The straightforward reply is: engineering compromise.
You see, a wing that is excellent for take-off will not be excellent for cruise. A wing that is excellent for cruising is just not excellent for touchdown. A wing that is excellent for one pace, altitude, or maneuver is suboptimal for an additional … and so forth. You get the gist. Trendy plane wings are a fastidiously engineered compromise, designed to be as excellent as potential in lots of situations.
The German Aerospace Middle is difficult this strategy. Why not engineer adaptability as an alternative of compromise? The answer: morphAIR, a morphing wing that might develop into high-lift when wanted, low-drag when cruising, responsive when turning, and steady in turbulence.
DLR (CC BY-NC-ND 3.0)
“The morphing wing can change its form throughout flight, permitting it to adapt optimally to completely different flight circumstances,” explains undertaking chief Martin Radestock from the DLR Institute of Light-weight Programs.
The wings are made fully of fiber-reinforced composites, that includes a “form shifting” trailing edge part. This characteristic is enabled by a Hyperelastic Trailing Edge Morphing system (HyTEM), a DLR-developed know-how that enables the wing to deform seamlessly, with out steps.
“The HyTEM idea replaces standard flaps and ailerons with an clever system comprising a number of small actuators distributed throughout the wingspan. These can exactly regulate the wing profiles at 10 factors with out creating gaps between sections. The continual form reduces profile drag. As well as, elevate, induced drag and plane management can all be influenced in a focused method – a significant benefit for aerodynamics and flight mechanics,” Radestock elaborates.
DLR engineers developed an AI-assisted flight management system designed particularly to make full use of the morphing wing’s distinctive motion capabilities. Throughout flight, the adaptive algorithm constantly screens the plane’s precise conduct and compares it in opposition to a educated mannequin. When deviations are detected, whether or not from turbulence, injury, or a failing actuator, the system redistributes instructions throughout the wing’s many distributed actuators in actual time, sustaining steady flight. The algorithm was additionally educated on deliberate failure situations, educating it to acknowledge and compensate for faults that will cripple a traditional fixed-wing system.
Feeding this AI is an equally intelligent type of sensing.
Relatively than blanketing the wing in sensors, DLR engineers developed a way to reconstruct the total aerodynamic strain distribution throughout the wing from only a small variety of measurement factors. This offers the flight management system an instantaneous, reside consciousness of the airflow across the wing at any given second. By evaluating the reconstructed strain discipline in opposition to the anticipated state, the system can robotically detect native disturbances and reply earlier than they escalate.
DLR (CC BY-NC-ND 3.0)
Collectively, the adaptive management algorithm and strain reconstruction allow morphAIR to actually “really feel” and “suppose” about how it’s flying. That is as near actual chicken adaptability as plane wings have ever gotten.

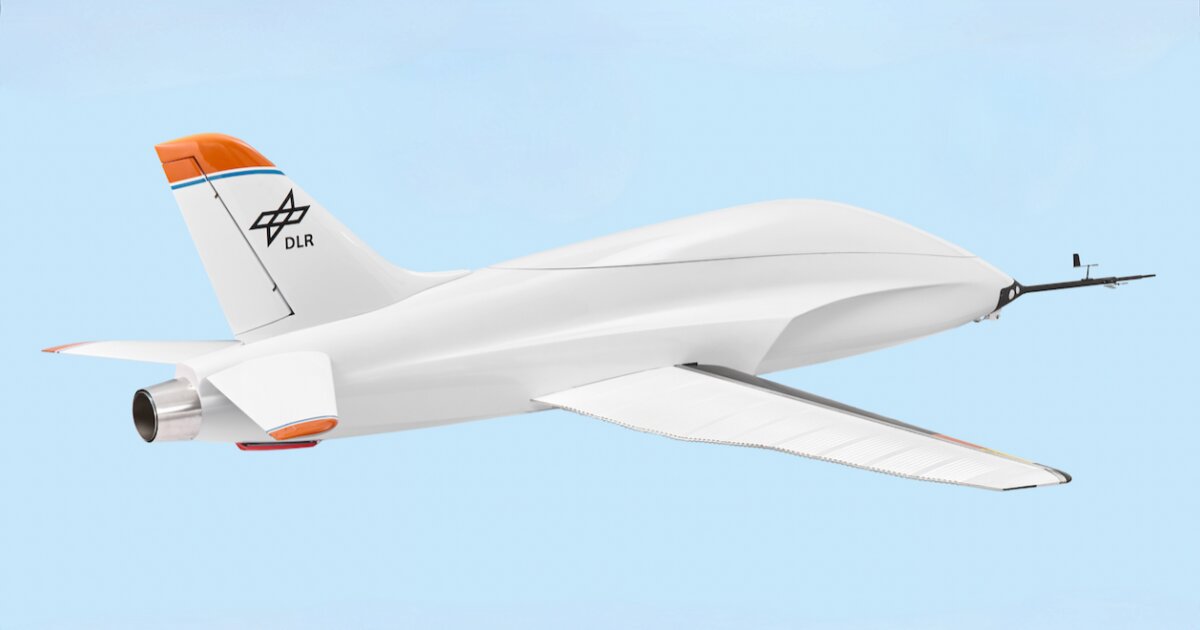

To check the idea, the DLR fitted an uncrewed experimental plane, PROTEUS, with each standard and morphing wing units. The profitable trials primarily demonstrated primary airworthiness and system integration, forming an important basis for additional improvement and testing.
Whereas these wings will not be coming to industrial plane anytime quickly, they seem to be a important improvement for unmanned plane. As a subsequent step, DLR plans to exhibit scalability with a take a look at flight utilizing a PROTEUS with a complete mass of 70 kg (154 lb).
You possibly can see the wings in shape-shifting motion by scrolling right down to the video within the hyperlink under.
Supply: DLR
