Of the numerous applied sciences invented over the previous half century, high-temperature superconductors are among the many most promising and but additionally probably the most irritating. Many years of analysis has yielded an assortment of supplies that superconduct at temperatures as excessive as -140 °C (133 kelvins) at ambient stress. And but industrial functions have been elusive.
Now, although, a few developments might lastly push high-temperature superconductors into industrial use. One is the supply, at comparatively average price, of copper-oxide-based superconducting tape, which is being produced by a couple of corporations for startups working on tokamak fusion reactors. The reactors use the superconducting tape, which is often fabricated from yttrium barium copper oxide, in highly effective electromagnets. The opposite improvement entails a special group of startups which can be utilizing the tape to construct electric motors with very excessive power-to-weight ratios, primarily to be used in electric aircraft.
Amongst that latter group of startups is Hinetics, shaped in 2017 to commercialize analysis led by Kiruba Haran on the University of Illinois Urbana-Champaign. This previous April, the corporate examined a prototype motor outfitted with superconducting rotor magnets. Based on Haran, the assessments, which included spinning a propeller in a laboratory setup, validated key parts of the corporate’s designs for superconducting motors that can function at energy ranges of 5 and 10 megawatts. Such ranges could be excessive sufficient to energy a regional passenger airliner with a number of motors. The work was funded partially by a grant from the Advanced Research Projects Agency–Energy (ARPA-E).
“HTS [high temperature superconductors] are having a second, as a result of the prices are coming down quickly, pushed by all of the work on fusion,” Haran says. “Lots of people are ramping up manufacturing, and new startups, and new capabilities, are coming into the market.”
Hinetics is considered one of maybe a dozen corporations, giant and small, attempting to make use of high-temperature superconductors to construct extraordinarily environment friendly motors with very excessive power density. These embrace aerospace large Airbus, which is engaged on a superconducting airliner beneath a program referred to as ZEROe, in addition to Toshiba, Raytheon, and U.Okay. startup HyFlux. Nonetheless, Hinetics is taking an uncommon method.
Widespread approaches to constructing a superconducting machine use the superconducting materials for both the rotor or stator coils, or each. Sometimes, the coils are cooled with a liquid or fuel stored at a sufficiently low temperature by an exterior cryocooling system. The fluid cools the superconducting coils by convection, by bodily flowing by warmth exchangers involved with the coils and carrying away warmth because it does so. The system has been used efficiently in some experimental motors and turbines, but it surely suffers from a number of basic issues. An enormous one is the necessity to flow into the cooling fluid by the rotor coils, that are embedded in a rotor meeting that’s spinning at maybe 1000’s of revolutions per minute. One other drawback is that this method requires an advanced cryocooling system that features pumps, seals, gaskets, pipes, insulation, a rotary coupling that transfers the cryogen into and out of the rotor, and different parts that may fail and that add appreciable weight.
The rotor coils in an experimental Hinetics electric motor are fabricated from a high-temperature superconductor. They’re cooled by a cryocooler that runs axially down the middle of the motor. The rotor meeting and the cryocooler are enclosed inside a vacuum vessel.Hinetics
Hinetics’s Revolutionary Concept: Spin the Cryocooler
Hinetics’s system, alternatively, makes use of a self-contained cryocooler that’s sufficiently small to be hooked up to the rotor, and which spins together with it, eliminating the necessity to move fluids into and out of a spinning vessel. With this association, “you don’t should immerse the superconductor into the fluid,” notes Laurent Pilon, an affiliate director for know-how at ARPA-E. As a substitute, “there’s a cryocooler, and a chilly connection, and also you pull out the warmth from the superconducting magnetic coils to the cryocooler, performing a refrigeration cycle. The wonder right here is that it simplifies every little thing as a result of now you simply have the cryocooler that spins with the shaft.”
On this configuration, the rotor meeting, together with the coils, is cooled by conduction fairly than convection. The rotor is put in inside a vacuum chamber. Warmth from the superconducting magnet meeting is transferred by a “thermal bus,” which is principally only a disk-shaped copper construction that conducts the warmth to the cryocooler, which is hooked up to the opposite facet of the copper disk.
One of many challenges, Haran says, was discovering a cryocooler small and light-weight sufficient to spin at excessive charges and hold functioning whereas doing so. For its proof-of-concept unit, the Hinetics crew used an off-the-shelf Stirling-cycle cooler from Sunpower. It will probably take away solely 10 watts of warmth from the rotor meeting however, on this configuration, that’s all that’s wanted to maintain the rotor coils superconducting, Haran says.
One potential downside of the system is that, due to this comparatively low heat-removal capability, the cryocooler takes a couple of hours to chill the superconducting magnet sufficiently to begin working. Future variations will scale back the interval wanted, based on Haran. And on the brilliant facet, the low heat-removal price means excessive effectivity, as a result of the cooler has simply sufficient energy to take care of the low temperatures wanted throughout operation, and never a lot extra capability.
To supply electric power to the spinning cryostat and rotor magnets the prototype used a slip ring. However future variations of the motor will use a wi-fi system, probably based mostly on inductive coupling, Haran says.

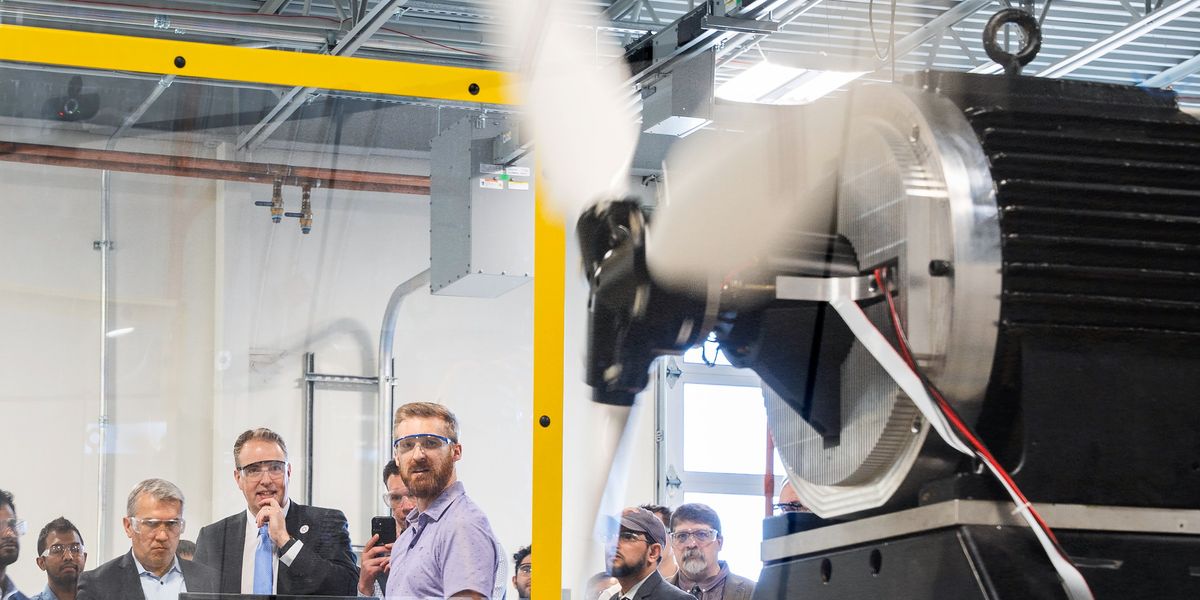

Checks of Hinetics’s superconducting motor this previous April validated the fundamental design and cleared the way in which for building of extra highly effective models.Hinetics
Purposes on Ships Are Additionally Potential
He opted to not make the stators superconducting, as a result of in a typical configuration the stator is energized by an alternating-current (AC) waveform. Superconductors are solely utterly lossless for direct current. So the appliance of AC to superconducting coils within the stator would end in energy losses that may require one other cooling system to take away warmth from the stator.
Haran figures it’s not obligatory. With superconductors simply within the rotor coils, the motor will obtain efficiencies within the vary of 98 to 99.5 %, which is about 4 or 5 share factors greater than what’s realistically potential with a permanent-magnet synchronous motor. Haran additionally insists that the superconducting design would attain this excessive effectivity with none discount in energy density, a mixture that’s exhausting to attain in a standard motor.
4 or 5 share factors won’t seem to be so much, however it will matter in typical aviation functions, Pilon says, particularly when coupled with greater energy density. On its web site, Hinetics claims that its motor has a steady particular energy of 10 kilowatts per kilogram, which might put the machine among the many most power-dense models out there, on a continuous-power foundation. Based on Haran, the following era of the superconducting motor will obtain 40 kW/kg, which might be far greater than something commercially out there.
Though aviation is the preliminary goal, Haran sees potential functions in ship propulsion, the place the motor’s excessive volumetric energy density could be a draw. “What’s actually thrilling is that we’re seeing a transformational new know-how change into sensible,” he says. “When you get to megawatts and low pace, wherever you want excessive torque, this may very well be very attention-grabbing.”
