Even though they bang their heads in opposition to timber every day, woodpeckers do not undergo mind accidents. Impressed by the tough-headed birds, scientists have developed a fixed-wing drone that may survive frontal collisions.
Mounted-wing drones are each quicker and extra energy-efficient than their multi-rotor cousins, however after they hit an immovable object reminiscent of a tree, they actually hit it – typically leading to irreparable injury to the plane. And whereas multi-rotors could be fitted with protecting cages, the design of fixed-wing drones makes such appendages tough to implement.

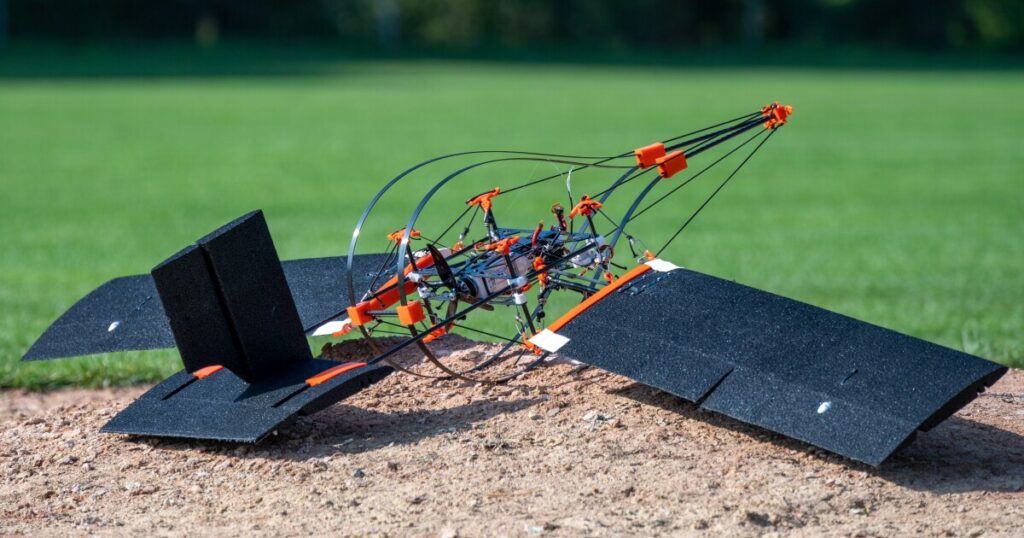

As an alternative, what’s wanted is a technique for the drones to non-destructively soak up influence power of their current type. That is the place EPFL Switzerland’s SWIFT drone – aka flying robotic – is available in.
Its identify an acronym for “Shockproof Woodpecker-Impressed Flying Tensegrity,” it does certainly incorporate a variation on buildings referred to as tensegrities. These are typically outlined as self-stabilizing buildings made up of inflexible (or on this case, semi-rigid) elements held in place by taut cables.
Skye McDavid/C.C. 4.0
A woodpecker’s cranium consists of a inflexible beak; a versatile hyoid bone that connects the beak to the brain-containing most important cranium bone by wrapping round it; and a layer of spongy bone positioned between the hyoid and the cranium bone. This association, together with the comparatively great amount of free area surrounding the mind contained in the cranium, redirects influence power away from the mind.
Within the SWIFT drone, inflexible carbon fiber rods substitute the beak, whereas bent carbon fiber strips take the place of the hyoid bone. The spongy bone is changed by elastic cables, and the principle cranium is substituted by carbon fiber plates linked to carbon tubes utilizing polylactic acid plastic brackets.
As an alternative of a mind, there are the digital elements, the motor, and the pusher propeller. These are suspended by rubber cables contained in the “cranium,” with sufficient room for them to journey by as much as 22 cm (8.7 in) upon influence.
EPFL
What’s extra, the woodpecker-inspired, tensegrity-based, crash-mitigation tech extents to the plane’s wings.
In woodpeckers and different birds, a community of prestressed mushy connective tissue within the shoulder joints helps the bones in these joints face up to the compressive pressure of wing-collisions with timber or different obstacles. Within the SWIFT drone, that setup is replicated by a community of 12 elastic cables and carbon fiber rods that join every wing to the principle fuselage.
Not solely does this association soak up the influence power that may in any other case pull the wings proper off the drone, it additionally absorbs power that would injury the plane’s “mind,” thus additionally defending it within the course of. All collectively, the SWIFT drone’s two tensegrity-based methods are claimed to scale back influence pressure by as much as 70% as in comparison with a business drone of comparable measurement and mass.
A paper on the analysis, which was led by Omar Aloui and colleagues, was not too long ago printed within the journal Advanced Robotics Research.
Collision-Resilient Tensegrity UAV
