China goes full Jules Verne because it prepares to go the place no drill has gone earlier than. As a part of its Deep Ocean Drilling Program, the special-built Meng Xiang (梦想号, “Dream”) drill ship is gearing up for a multi-year effort to pierce the Earth’s crust.
Ever since Homer’s The Odyssey, storytellers have been fascinated with touring beneath the floor of the Earth into the mysterious underworld. Dante wrote of a day journey to Hell on the Earth’s core and in 1864 Verne revealed his science fiction basic Journey to the Middle of the Earth (Voyage au middle de la Terre), the place a crew of adventurers descend by way of the Earth’s crust and embark on all types of fabulous adventures.
These had been adopted by the likes of Edgar Rice Burroughs, John Wyndham, H.P. Lovecraft, and lots of others in novels, quick tales, comics, movies, Saturday morning serials (with singing cowboys!), and tv exhibits. And fictional menaces returned from their journeys with the world being menaced by big radioactive blobs, prehistoric lizard males, big pterodactyls leveling Tokyo (as they do), and all types of variants of mole individuals and lava males.
Xinhua
Nevertheless, attending to the Earth’s core in actual life is lots tougher than climbing down an extinct volcano or placing collectively an iron mole to get you there.
If you happen to attempt taking place in a pure cavern, the deepest you will get is within the Veryovkina Collapse Abkhazia, Georgia with a depth of seven,257 ft (2,212 m). It wasn’t even found till 1968 and took half a century to discover correctly. As for digging, nicely, that is been fairly gradual in progressing. In 1862, the deepest hand-dug excavation was Woodingdean Effectively in Brighton and Hove, England – and it solely reached 1,285 ft (392 m). Oil and gasoline drilling saved setting new data and the Empire gold mine in California had plumbed to 11,007 ft (3,355 m) when it closed in 1956.
Nevertheless, the Chinese language are going for one thing much more formidable. What they need to do is observe within the footsteps of the American Venture Moho of the late Nineteen Fifties and early Nineteen Sixties, which wasn’t simply making an attempt to drill deep, however open a completely new geological frontier.
Xinhua
Venture Moho was named after the Mohorovičić discontinuity or Moho, which is a basic boundary throughout the Earth’s inside. Found in 1909 by Croatian seismologist Andrija Mohorovičić, it is the purpose the place the Earth’s crust and the mantle meet and work together. Up to now, all we learn about it has come from seismograph readings and inferences from minerals introduced up by volcanic exercise, but it surely’s basically the place the lighter silicate rocks of the crust give solution to the a lot denser ultramafic rocks of the mantle.
What Venture Moho aimed to do was drill right down to the Moho and return samples that scientists would have the ability to research immediately, in addition to learning the properties of the Moho immediately. It was additionally designed to search for proof of continental drift – an concept that was then simply beginning to shift out of crackpot territory and into the scientific mainstream.
That was all nicely and good, but it surely was a bit like exploring the Moon in that the scientists and engineers behind Venture Moho needed to develop complete new drilling methods, core retrievals, and drill administration simply to get there. Worse, the Moho is not at a uniform depth beneath the floor. Underneath the continental crust, the Moho is from 12 to 56 miles (20 to 90 km) down. Underneath the ocean ground, it’s a lot shallower, simply three to 6 miles (5 to 10 km) down. This supplied the good thing about drilling by way of much less rock, however got here with the problem of working a drill rig from a ship positioned above a number of thousand fathoms of open ocean.
Xinhua
Lengthy story quick, when Venture Moho terminated after a number of drilling phases in addition to price overruns and political infighting, it had reached a most depth of 601 ft (183 m) off the coast of Guadalupe Island, Mexico at a sea depth of 11,700 ft (3,600 m). This might later be crushed by the Kola Superdeep Borehole (SG-3) that drilled within the Murmansk Oblast, USSR in 1979, additionally making an attempt to succeed in the Moho, that reached a depth of 39,720 ft (12,00 m) – and that was by way of the a lot thicker continental crust, getting solely one-third of the way in which.
Keep in mind that whereas different drilling operations have gone deeper, that’s when it comes to the size of the drilling, which may curve away from straight down, whereas Venture Moho and SG-3 are measured in true vertical depth.
Now China is stepping as much as the plate with extra at stake than simply reaching the deep-drilling equal of reaching the North Pole or discovering the supply of the Nile. As a part of its wider world ambitions, Beijing desires to determine China as a serious participant in deep-sea exploration, drilling, mining, and associated fields.
Xinhua
China’s try to succeed in the Moho comes underneath its Deep Ocean Drilling Programme, which is a multi-decade effort devoted to Earth sciences; deep-sea biosphere analysis; the research of undersea earthquakes and comparable hazards; the research of plate tectonics, paleoceanography and local weather change; looking for out and exploiting deep-water oil and gasoline reserves; and deep-sea mining.
Past that, it is also tasked with making China dominant or self-sufficient within the applied sciences required for these fields on a world or no less than on a regional scale, in addition to securing new vitality sources and rising China’s maritime energy.

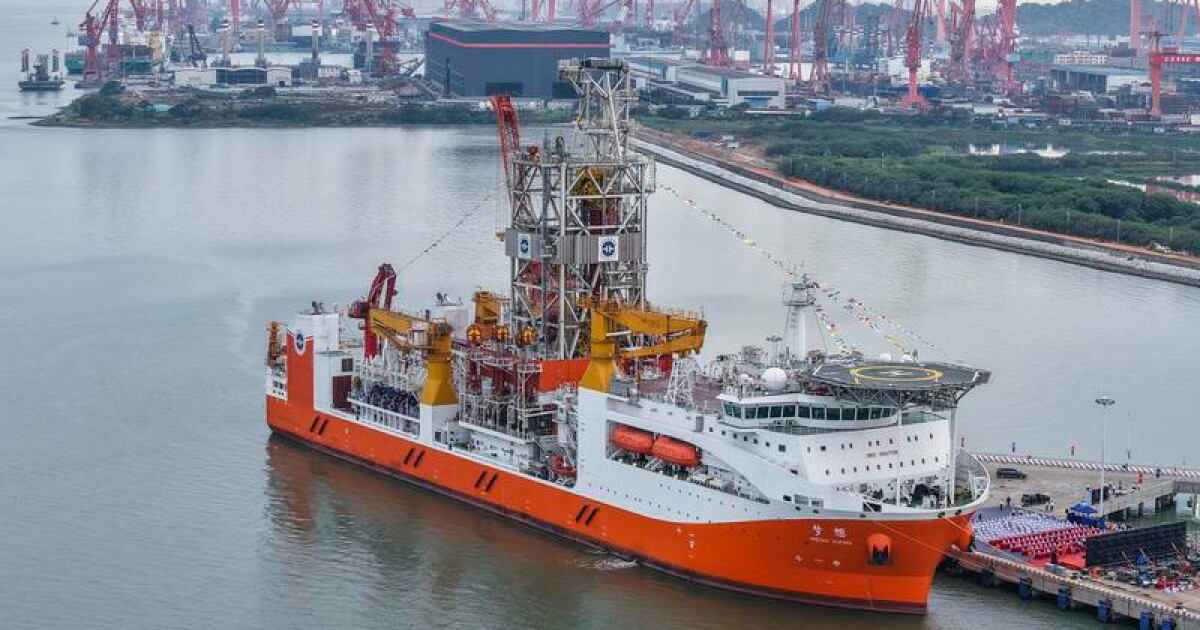

There are a selection of elements of this program, however the flagship is the Meng Xiang. Described as China’s first domestically designed and constructed deep-ocean drilling vessel, it was formally commissioned in Guangzhou on November 17, 2024 and after it completes becoming out and sea trials, it is anticipated to start drilling operations within the South China Sea later this yr, which can proceed till 2035.
Other than penetrating the Earth’s crust (hopefully with out disturbing some science fiction horror), it is also a multi-purpose vessel able to deep-sea useful resource exploration with a concentrate on discovering reserves of oil and gasoline in addition to pure gasoline hydrates – the well-known flammable ice present in very chilly areas. It may well additionally retrieve deep-ocean geological cores, and act as a testbed for brand spanking new applied sciences.
The Meng Xiang measures 560 ft (180 m) lengthy with a beam of 108 ft (33 m) and displaces about 42,600 tonnes. Carrying a crew of 180 officers, rankings, and researchers, it has an endurance of 120 days with out resupply and a variety of 15,000 nautical miles (27,780 km). As for drilling, it could drop a drill pipe thread weighing 907 tonnes some 36,000 ft (11,000 m) beneath the ocean floor and might function in tough sea situations in extra of a Drive 12 storm.
It additionally boasts a particular mud recycling system to cut back fouling of the native waters throughout drilling and what’s claimed to be the world’s first automated shipborne core pattern storage system – to not point out room for 9 superior onboard scientific laboratories in fields together with geology, geochemistry, microbiology, ocean science, and drilling know-how.
Xinhua
It is numerous subtle {hardware} and the Meng Xiang will want it. The Moho is not simply deep and it might not even be close to the molten core, but it surely marks a spot the place the standard guidelines of geology and mineralogy might not break down, however they do get severely bent for his or her troubles.
The strain and temperatures at such depths are staggering. If you happen to’re trying on the Moho underneath the ocean ground, the strain can attain 2,000 atmospheres and the temperatures peg at 302 to 572 °F (150 to 300 °C). Underneath the continental shelf, it involves 10,000 atmospheres and a balmy 932 to 1,292 °F (500 to 700 °C). Underneath such situations, the pores of the rocks collapse and so they develop into a lot denser and water is squeezed out of its matrix, pushing metamorphic processes that convert the rocks into new minerals as they attempt to stabilize.
Extra necessary from a drilling viewpoint is that the rocks close to the Moho change their habits. They first develop into extra brittle, then extra plastic till a drill bit forcing its method down is not a lot chopping as chewing by way of a kind of high-temperature, high-pressure putty because it turns into viscous – to not point out partially melting in locations.
Xinhua
To a geologist or a mineralogist, that is fascinating, however to a deep-drilling engineer on the deck of a ship making an attempt to carry station to express tolerances in a tossing sea, it comes underneath the heading of aggravation.
Although China emphasizes that the Meng Xiang will probably be open to worldwide collaboration, the entire venture is skirting controversy. Deep sea operations that had been supposedly harmless have, prior to now, acted as a canopy for some fairly devious intelligence operations, so it will be stunning if the Chinese language Moho venture did not entice no less than a sure diploma of suspicion.
There’s additionally the truth that China has been pushing an aggressive coverage of extending its claims over the South China Sea that already have it into scorching water. In 2014, the Chinese language Hai Yang Shi You 981 oil rig was claimed to infringe on Vietnamese waters and future drilling by the Meng Xiang may invite comparable controversy.
Xinhua
Then there’s the truth that the Meng Xiang is an oil and gasoline exploration vessel. Whether it is suspected that a part of its scientific work secretly contains vitality prospecting within the disputed waters round Vietnam, the Philippines, Malaysia, or Brunei within the South China Sea, it may end in diplomats placing in for additional time within the coming years – particularly if the Meng Xian is seen as an growth of Chinese language maritime capabilities or an try to say territorial claims. On the very least, the Meng Xiang may discover itself trailed by ships of different nations that simply “occur” to be within the neighborhood and appear to hold an terrible lot of telescopes and antennae.
So, on the subject of the Meng Xiang, are we speaking innocuous Jacques Cousteau, world-smashing Sir Arthur C Clarke, or Chilly Battle Alistair Maclean?
Solely time and occasions will inform.
