Need to know what attracts me to soundscape evaluation?
It’s a discipline that mixes science, creativity, and exploration in a method few others do. Initially, your laboratory is wherever your toes take you — a forest path, a metropolis park, or a distant mountain path can all turn out to be areas for scientific discovery and acoustic investigation. Secondly, monitoring a selected geographic space is all about creativity. Innovation is on the coronary heart of environmental audio analysis, whether or not it’s rigging up a customized system, hiding sensors in tree canopies, or utilizing solar energy for off-grid setups. Lastly, the sheer quantity of information is actually unimaginable, and as we all know, in spatial evaluation, all strategies are truthful sport. From hours of animal calls to the delicate hum of city equipment, the acoustic knowledge collected may be huge and sophisticated, and that opens the door to utilizing every little thing from deep studying to geographical data programs (GIS) in making sense of all of it.
After my earlier adventures with soundscape analysis of one of Poland’s rivers, I made a decision to lift the bar and design and implement an answer able to analysing soundscapes in actual time. On this weblog submit, you’ll discover a description of the proposed technique, together with some code that powers the complete course of, primarily utilizing an Audio Spectrogram Transformer (AST) for sound classification.
Strategies
Setup

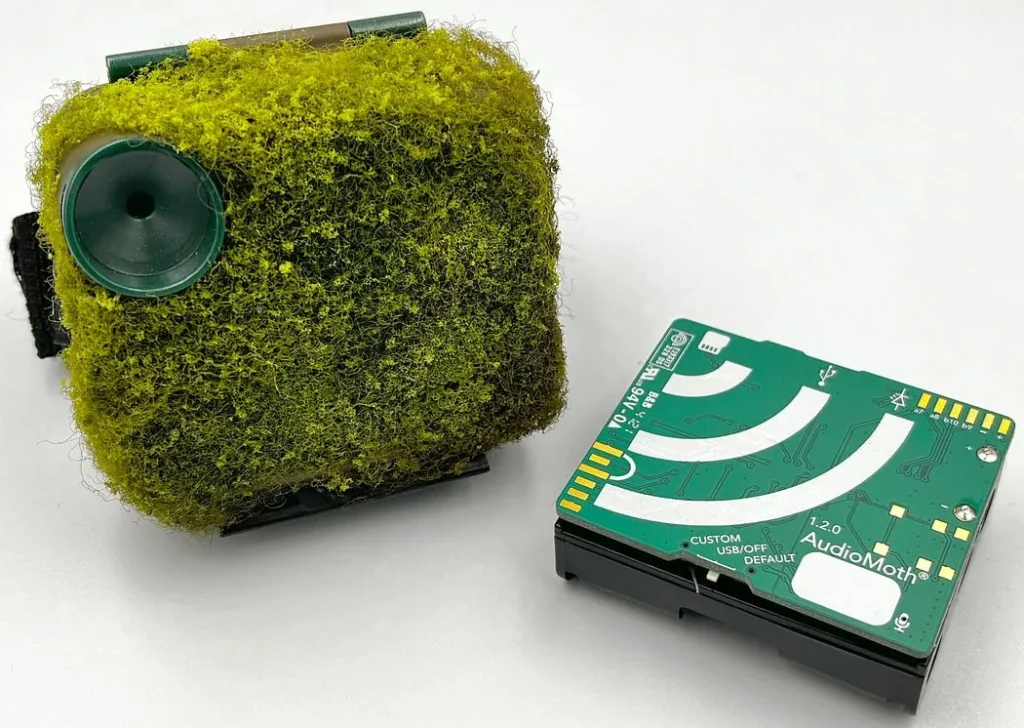

There are lots of explanation why, on this explicit case, I selected to make use of a mixture of Raspberry Pi 4 and AudioMoth. Imagine me, I examined a variety of units — from much less power-hungry fashions of the Raspberry Pi household, by numerous Arduino variations, together with the Portenta, all the way in which to the Jetson Nano. And that was just the start. Selecting the best microphone turned out to be much more difficult.
Finally, I went with the Pi 4 B (4GB RAM) due to its stable efficiency and comparatively low energy consumption (~700mAh when working my code). Moreover, pairing it with the AudioMoth in USB microphone mode gave me plenty of flexibility throughout prototyping. AudioMoth is a strong system with a wealth of configuration choices, e.g. sampling charge from 8 kHz to beautiful 384 kHz. I’ve a robust feeling that — in the long term — this may show to be an ideal alternative for my soundscape research.
Capturing sound
Capturing audio from a USB microphone utilizing Python turned out to be surprisingly troublesome. After fighting numerous libraries for some time, I made a decision to fall again on the nice previous Linux arecord. The entire sound seize mechanism is encapsulated with the next command:
arecord -d 1 -D plughw:0,7 -f S16_LE -r 16000 -c 1 -q /tmp/audio.wavI’m intentionally utilizing a plug-in system to allow computerized conversion in case I want to introduce any adjustments to the USB microphone configuration. AST is run on 16 kHz samples, so the recording and AudioMoth sampling are set to this worth.
Take note of the generator within the code. It’s vital that the system repeatedly captures audio on the time intervals I specify. I aimed to retailer solely the latest audio pattern on the system and discard it after the classification. This strategy shall be particularly helpful later throughout larger-scale research in city areas, because it helps guarantee individuals’s privateness and aligns with GDPR compliance.
import asyncio
import re
import subprocess
from tempfile import TemporaryDirectory
from typing import Any, AsyncGenerator
import librosa
import numpy as np
class AudioDevice:
def __init__(
self,
identify: str,
channels: int,
sampling_rate: int,
format: str,
):
self.identify = self._match_device(identify)
self.channels = channels
self.sampling_rate = sampling_rate
self.format = format
@staticmethod
def _match_device(identify: str):
traces = subprocess.check_output(['arecord', '-l'], textual content=True).splitlines()
units = [
f'plughw:{m.group(1)},{m.group(2)}'
for line in lines
if name.lower() in line.lower()
if (m := re.search(r'card (d+):.*device (d+):', line))
]
if len(units) == 0:
elevate ValueError(f'No units discovered matching `{identify}`')
if len(units) > 1:
elevate ValueError(f'A number of units discovered matching `{identify}` -> {units}')
return units[0]
async def continuous_capture(
self,
sample_duration: int = 1,
capture_delay: int = 0,
) -> AsyncGenerator[np.ndarray, Any]:
with TemporaryDirectory() as temp_dir:
temp_file = f'{temp_dir}/audio.wav'
command = (
f'arecord '
f'-d {sample_duration} '
f'-D {self.identify} '
f'-f {self.format} '
f'-r {self.sampling_rate} '
f'-c {self.channels} '
f'-q '
f'{temp_file}'
)
whereas True:
subprocess.check_call(command, shell=True)
knowledge, sr = librosa.load(
temp_file,
sr=self.sampling_rate,
)
await asyncio.sleep(capture_delay)
yield knowledgeClassification
Now for probably the most thrilling half.
Utilizing the Audio Spectrogram Transformer (AST) and the wonderful HuggingFace ecosystem, we will effectively analyse audio and classify detected segments into over 500 classes.
Word that I’ve ready the system to help numerous pre-trained fashions. By default, I exploit MIT/ast-finetuned-audioset-10–10–0.4593, because it delivers one of the best outcomes and runs effectively on the Raspberry Pi 4. Nonetheless, onnx-community/ast-finetuned-audioset-10–10–0.4593-ONNX can be price exploring — particularly its quantised model, which requires much less reminiscence and serves the inference outcomes faster.
You might discover that I’m not limiting the mannequin to a single classification label, and that’s intentional. As a substitute of assuming that just one sound supply is current at any given time, I apply a sigmoid operate to the mannequin’s logits to acquire impartial chances for every class. This permits the mannequin to specific confidence in a number of labels concurrently, which is essential for real-world soundscapes the place overlapping sources — like birds, wind, and distant visitors — usually happen collectively. Taking the high 5 outcomes ensures that the system captures the almost definitely sound occasions within the pattern with out forcing a winner-takes-all choice.
from pathlib import Path
from typing import Optionally available
import numpy as np
import pandas as pd
import torch
from optimum.onnxruntime import ORTModelForAudioClassification
from transformers import AutoFeatureExtractor, ASTForAudioClassification
class AudioClassifier:
def __init__(self, pretrained_ast: str, pretrained_ast_file_name: Optionally available[str] = None):
if pretrained_ast_file_name and Path(pretrained_ast_file_name).suffix == '.onnx':
self.mannequin = ORTModelForAudioClassification.from_pretrained(
pretrained_ast,
subfolder='onnx',
file_name=pretrained_ast_file_name,
)
self.feature_extractor = AutoFeatureExtractor.from_pretrained(
pretrained_ast,
file_name=pretrained_ast_file_name,
)
else:
self.mannequin = ASTForAudioClassification.from_pretrained(pretrained_ast)
self.feature_extractor = AutoFeatureExtractor.from_pretrained(pretrained_ast)
self.sampling_rate = self.feature_extractor.sampling_rate
async def predict(
self,
audio: np.array,
top_k: int = 5,
) -> pd.DataFrame:
with torch.no_grad():
inputs = self.feature_extractor(
audio,
sampling_rate=self.sampling_rate,
return_tensors='pt',
)
logits = self.mannequin(**inputs).logits[0]
proba = torch.sigmoid(logits)
top_k_indices = torch.argsort(proba)[-top_k:].flip(dims=(0,)).tolist()
return pd.DataFrame(
{
'label': [self.model.config.id2label[i] for i in top_k_indices],
'rating': proba[top_k_indices],
}
)To run the ONNX model of the mannequin, it’s essential add Optimum to your dependencies.
Sound strain stage
Together with the audio classification, I seize data on sound strain stage. This strategy not solely identifies what made the sound but in addition good points perception into how strongly every sound was current. In that method, the mannequin captures a richer, extra reasonable illustration of the acoustic scene and may ultimately be used to detect finer-grained noise air pollution data.
import numpy as np
from maad.spl import wav2dBSPL
from maad.util import mean_dB
async def calculate_sound_pressure_level(audio: np.ndarray, acquire=10 + 15, sensitivity=-18) -> np.ndarray:
x = wav2dBSPL(audio, acquire=acquire, sensitivity=sensitivity, Vadc=1.25)
return mean_dB(x, axis=0)The acquire (preamp + amp), sensitivity (dB/V), and Vadc (V) are set primarily for AudioMoth and confirmed experimentally. In case you are utilizing a unique system, you should determine these values by referring to the technical specification.
Storage
Knowledge from every sensor is synchronised with a PostgreSQL database each 30 seconds. The present city soundscape monitor prototype makes use of an Ethernet connection; due to this fact, I’m not restricted by way of community load. The system for extra distant areas will synchronise the information every hour utilizing a GSM connection.
label rating system sync_id sync_time
Hum 0.43894055 yor 9531b89a-4b38-4a43-946b-43ae2f704961 2025-05-26 14:57:49.104271
Mains hum 0.3894045 yor 9531b89a-4b38-4a43-946b-43ae2f704961 2025-05-26 14:57:49.104271
Static 0.06389702 yor 9531b89a-4b38-4a43-946b-43ae2f704961 2025-05-26 14:57:49.104271
Buzz 0.047603738 yor 9531b89a-4b38-4a43-946b-43ae2f704961 2025-05-26 14:57:49.104271
White noise 0.03204195 yor 9531b89a-4b38-4a43-946b-43ae2f704961 2025-05-26 14:57:49.104271
Bee, wasp, and so on. 0.40881288 yor 8477e05c-0b52-41b2-b5e9-727a01b9ec87 2025-05-26 14:58:40.641071
Fly, housefly 0.38868183 yor 8477e05c-0b52-41b2-b5e9-727a01b9ec87 2025-05-26 14:58:40.641071
Insect 0.35616025 yor 8477e05c-0b52-41b2-b5e9-727a01b9ec87 2025-05-26 14:58:40.641071
Speech 0.23579548 yor 8477e05c-0b52-41b2-b5e9-727a01b9ec87 2025-05-26 14:58:40.641071
Buzz 0.105577625 yor 8477e05c-0b52-41b2-b5e9-727a01b9ec87 2025-05-26 14:58:40.641071Outcomes
A separate software, constructed utilizing Streamlit and Plotly, accesses this knowledge. At present, it shows details about the system’s location, temporal SPL (sound strain stage), recognized sound courses, and a variety of acoustic indices.
And now we’re good to go. The plan is to increase the sensor community and attain round 20 units scattered round a number of locations in my city. Extra details about a bigger space sensor deployment shall be obtainable quickly.
Furthermore, I’m amassing knowledge from a deployed sensor and plan to share the information bundle, dashboard, and evaluation in an upcoming weblog submit. I’ll use an fascinating strategy that warrants a deeper dive into audio classification. The principle concept is to match completely different sound strain ranges to the detected audio courses. I hope to discover a higher method of describing noise air pollution. So keep tuned for a extra detailed breakdown quickly.
Within the meantime, you may learn the preliminary paper on my soundscapes research (headphones are compulsory).
